Brand: Altronix
|
SKU:
10216157
Altronix SMP7PMCTX220 | Power Supply Charger, Single Output, 12/24VDC @ 6A, 220VAC, Supervision, BC300 Enclosure
Regular price
$329.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP7PMCTX220 | Power Supply Charger, Single Output, 12/24V...
Regular price
$329.31
Unit price
Description
Description

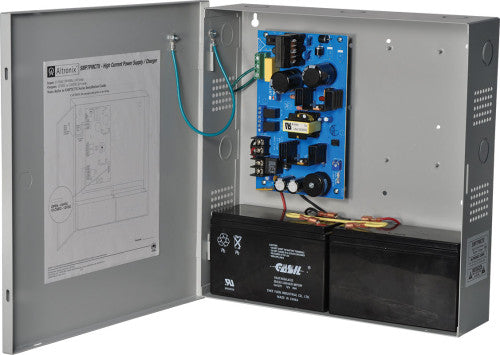

SMP7PMCTX220 supervised power supply/charger converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output @ 6A continuous supply current.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
Output
- 12VDC or 24VDC selectable output.
- 6A supply current.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 8.3 Lbs. (3.76 kg). |
|---|---|
| Shipping Weight | 9.3 Lbs. (4.22 kg). |
