Brand: Altronix
|
SKU:
742782

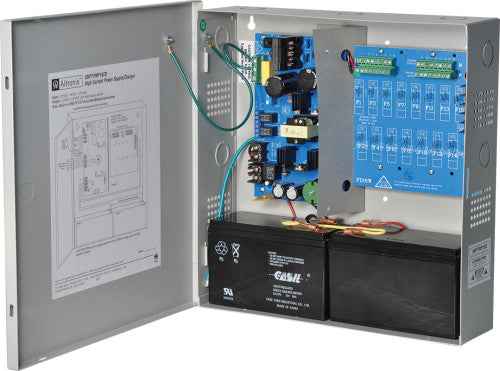

Altronix SMP7PMP16CB | Power Supply Charger, 16 PTC Outputs, 12/24VDC @ 6A, 115VAC, Supervision, BC300 Enclosure
Regular price
$371.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP7PMP16CB | Power Supply Charger, 16 PTC Outputs, 12/24V...
Regular price
$371.52
Unit price
Description
Description
SMP7PMP16CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) PTC protected 12VDC or 24VDC outputs.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/12AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 60Hz, 2.5A.
Output
- 12VDC or 24VDC selectable output.
- 6A supply current.
- Sixteen (16) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 9.2 Lbs. (4.173 kg). |
|---|---|
| Shipping Weight | 10.6 Lbs. (4.808 kg). |
