Brand: Altronix
|
SKU:
10216162

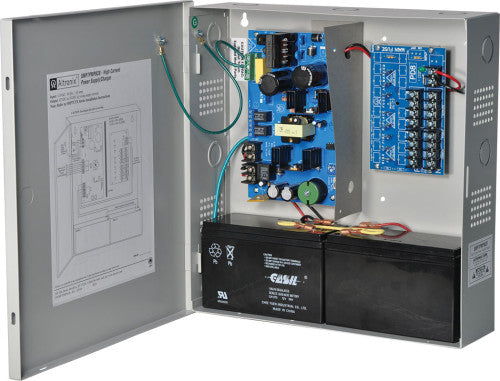

Altronix SMP7PMP8CB220 | Power Supply Charger, 8 PTC Outputs, 12/24VDC @ 6A, 220VAC, Supervision, BC300 Enclosure
Regular price
$362.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP7PMP8CB220 | Power Supply Charger, 8 PTC Outputs, 12/24...
Regular price
$362.38
Unit price
Description
Description
Altronix SMP7PMP8CB220 | Power Supply Charger, 8 PTC Outputs, 12/24VDC @ 6A, 220VAC, Supervision, BC300 Enclosure
SMP7PMP8CB220 converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output via (8) eight PTC protected outputs.
SMP7PMP8CB220 converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output via (8) eight PTC protected outputs.
Altronix - SMP7PMP8CB220 - Features and Specifications
- INPUT
- Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 6A of continuous supply current output.
- Eight (8) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
- Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
Specifications
Specifications
Altronix - SMP7PMP8CB220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - SMP7PMP8CB220 - Visual Indicators
- AC input and DC output LED indicators.
Altronix - SMP7PMP8CB220 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 330VA.
Altronix - SMP7PMP8CB220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
Altronix - SMP7PMP8CB220 - Weights (approximate)
| Product Weight: | 8.3 Lbs. (3.76 kg). |
|---|---|
| Shipping Weight | 9.3 Lbs. (4.22 kg). |
