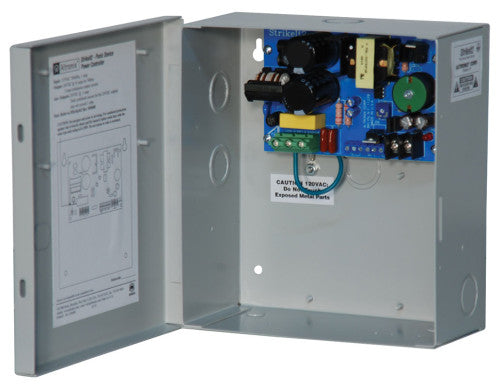

Altronix STRIKEIT2 | Panic Device Controller / Power Supply/Charger, 24VDC @ 16A in-Rush, 115VAC, BC100 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/4AH Batteries.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• 115VAC 60Hz, 7A.
• One (1) N/O trigger input.

Output

• One (1) 23.2-24VDC lock output rated up to 16A for 300ms, 0.5A continuous hold current.*
• One (1) 23.2-24VDC filtered regulated auxiliary output rated @ 0.5A continuous supply current. *
• * Note: Total combined current for the outputs may not exceed 1A.

Battery Backup

• Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• When 4AH batteries are used, battery capacity for emergency stand-by is at least a 1/2 hour.

Visual Indicators

• Green AC Power LED indicates 115VAC present.
• Red LED indicates presence of 24VDC.

Temperature

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 151 BTU/Hr.
• System AC input VA requirement: 805VA.

Weights (approximate)
