Brand: Altronix
|
SKU:
380652

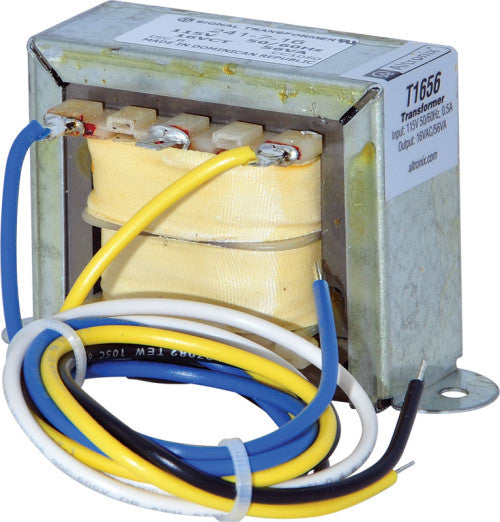

Altronix T1656 | Open Frame Transformer, 16VAC @ 56VA, 115VAC
Regular price
$57.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1656 | Open Frame Transformer, 16VAC @ 56VA, 115VAC
Regular price
$57.44
Unit price
Description
Description
Altronix T1656 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Specifications
Specifications
Dimensions (approximate)
- 2.25"W x 3.7"L x 2.2"H (57 mm W x 94 mm L x 56 mm H).
Input
- 115VAC 50/60 Hz, 0.5A.
Output
- 16VAC/56VA (3.5A) supply current.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C (-4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 29 BTU/Hr.
- System AC input VA requirement: 57.5VA.
Weights (approximate)
| Product Weight | 1.8 Lbs. (0.861 kg). |
|---|---|
| Shipping Weight | 2.5 Lbs. (1.133 kg). |
