Altronix T1AXK3F2S | 2-Door Altronix/Axis Access and Power Integrat...
Description
Description

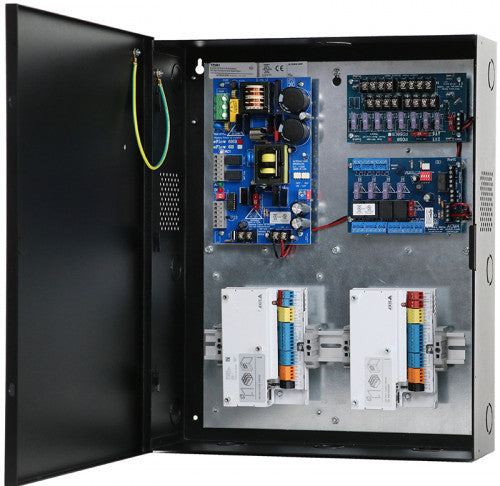

Altronix T1AXK3F2S kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates one (1) A1610 or two (2) A1210 for up to two (2) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1AXK3F2S - Features
- 12 or 24VDC power supply/charger Accommodates one (1) A1610 or two (2) A1210 modules
- Nine (9) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)-
- Electronic Access Control Systems CE European Conformity 16 AWG galvanized steel backplane simplifies board layout and wire management Enclosure accommodates up to two (2) 12VDC/7AH batteries
Specifications
Specifications
Altronix - T1AXK3F2S - Specifications
| Input Voltage | 120VAC, 60Hz. 4.5A |
|---|---|
| Input Fuse | 5A/250V |
| Output Voltage | 12VDC or 24VDC selectable |
| Battery Charging Capacity | 7AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| Input | 24VDC is present |
| Input Fuses | 10A/32V |
| Relative Humidity: | 85% +/– 5% |
| Dimensions (H x W x D) | 18" x 14.5" x 4.62" (457.2mm x 368.3mm x 118.0mm) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | 20ºC to 70ºC (– 4ºF to 158ºF) |
