Altronix T1AXK3F2SDV | 2-Door Altronix/Axis Access and Power Integr...
Description
Description

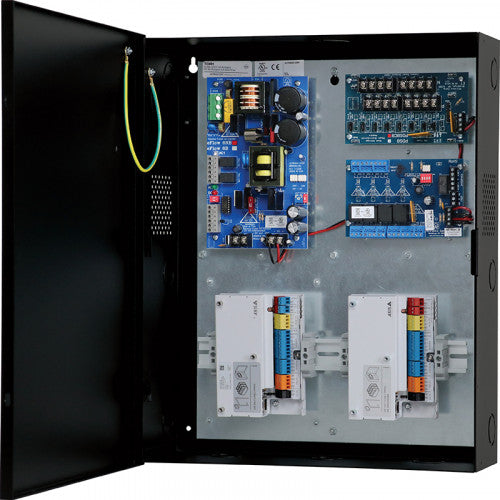

Altronix T1AXK3F2SDV kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module. This kit also accommodates one (1) A1610 or two (2) A1210 for up to two (2) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T1AXK3F2SDV - Specifications
| Input Volage | 220VAC |
|---|---|
| Output | 12VDC or 24VDC selectable |
| Battery Charging | Sealed lead acid or gel type |
| Supervision | Form “C” contacts |
| Indicators LED | 120VAC is present |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 87 BTU/Hr |
| Dimensions | 14.5"W x 18"H x 4.62"D |
| Weight | 15.5 Lbs |
