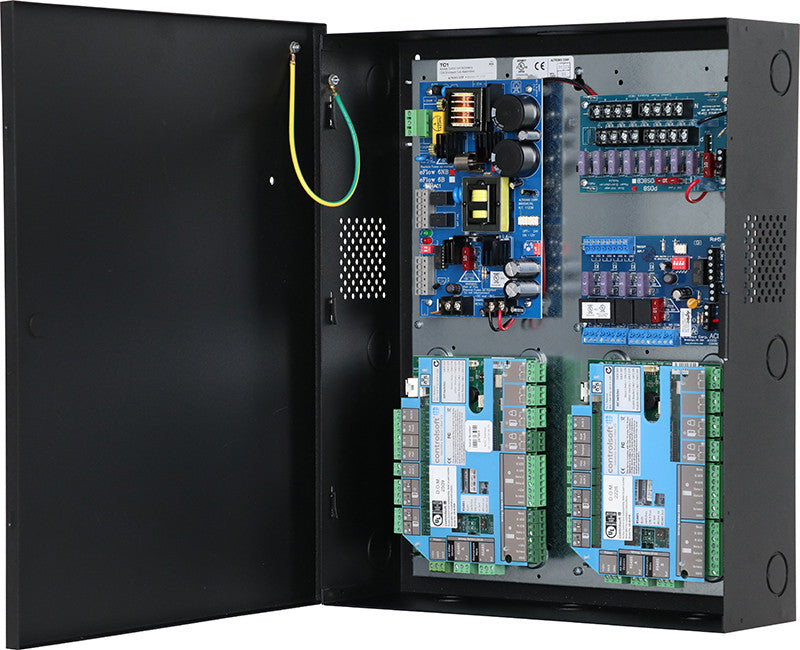

Altronix T1CSK3F4 | 4-Door Altronix/Controlsoft Access and Power Integration Kit
Altronix T1CSK3F4 kit consists of Trove1 enclosure, TC1 backplane with one (1) 24VDC @ 6A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates two (2) iNet for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1CSK3F4 - Features
- 24VDC power supply/charger
- Accommodates two (2) iNet modules
- 16 gauge galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to two (2) 12VDC/7AH batteries
- CE European Conformity
Specifications
Specifications
Altronix - T1CSK3F4 - Specifications
| Input Voltage | 120VAC, 60Hz, 3.5A max. |
|---|---|
| Outputs Voltage | 12VDC or 24VDC selectable |
| Battery Charging | 7AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure) |
| Supervision | AC Failure: Form “C” contacts. |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 87 BTU/Hr. |
| Dimensions | 14.5"W x 18"H x 4.62"D |
| Weights | 15.5 Lbs |
