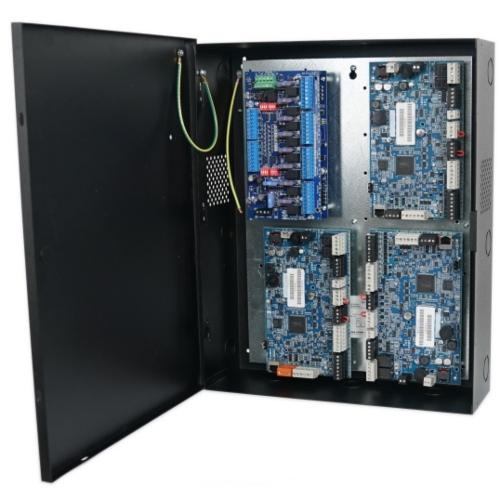

Altronix T1CVKT6S | 6-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with Tango1B, ACMS8

Altronix T1CVKT6S | 6-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with Tango1B, ACMS8

Tango1B PoE Driven Power Supply/Charger / Ethernet Input

802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)

Power Output

When using 802.3bt 90W:
12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
Combined output not to exceed 65W.
When charging batteries:
12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
Combined output not to exceed 55W

Ethernet Output

Pass-through Ethernet Port (data only).

Battery Charging Circuit

12VDC battery charger for Lithium Iron Phosphate Battery (LiFeP04 only)
Unique technology allows for single battery to backup 12VDC and/or 24VDC systems

Supervision

Loss of PoE Input.
Battery Supervision

Indicators (LED)

Input: Indicates input voltage is present.
Output: Indicates normal operating condition.
PoE Type: PoE Class Indicator
Supervision: PoE Fail or BAT Fail

ACMS8 Dual Input Access Power Controller / Inputs

Voltage: 12VDC and 24VDC from Tango1B.
Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized.
Main Fuse Rating: 15A/32V.

Outputs

Voltage: 12VDC and/or 24VDC
Eight (8) independently controlled fused outputs
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3A/32V.

Indicators LED

Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.

Individual voltage LEDs

Green: 12VDC
Red: 24VDC.

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.)

54 BTU/Hr.
