Altronix T1DK3FA4D | 4-Door Altronix/DIN Rail Access and Power Integration Kit - Trove1DR1 with eFlow6NTB, ACM4CB, D12, RSB1

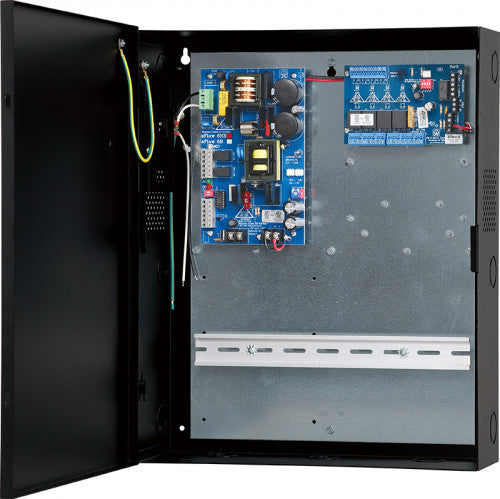

Altronix T1DK3FA4D kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) PTC access power controller. This kit also accommodates any DIN Rail mountable products for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1DK3FA4D - Features
- 12 or 24VDC power supply/charger
- Accommodates any DIN Rail mountable products
- Nine (9) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)-
- Low Battery and Battery Presence
- Low power shutdown
Specifications
Specifications
Altronix - T1DK3FA4D - Specifications
| Input Voltage | 120VAC, 60Hz, 3.5A max. |
|---|---|
| Input Fuse | 5A/250V |
| Output Voltage | 12VDC or 24VDC selectable |
| Battery Charging Capacity | 7AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| DC Output | Powered |
| Input PTC | 9A |
| Relative Humidity: | 85% +/– 5% |
| Dimensions (H x W x D) | 18" x 14.5" x 4.62" (457.2mm x 368.3mm x 118.0mm) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | 20ºC to 70ºC (– 4ºF to 158ºF) |
| Weight (approx.) | 15.5 lb. (7.0 kg) |
| BTU/Hr. (approx.) | 12VDC: 40 BTU/Hr, 24VDC: 77 BTU/Hr |
