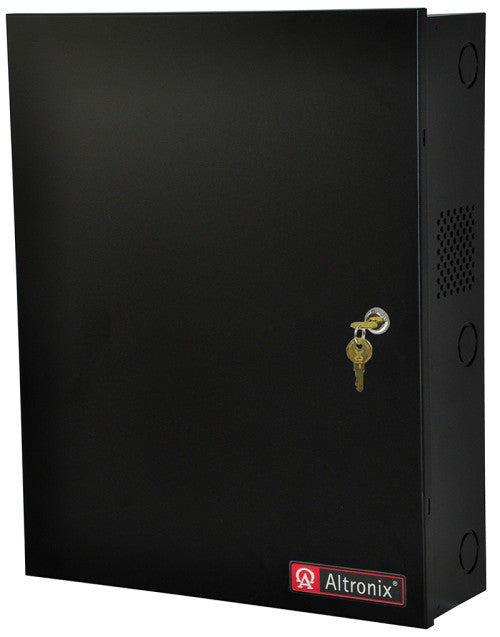

Altronix T1KE3F8D | 8-Door Altronix/Kisi Access and Power Integration Kit - Trove1LU1 with eFlow6NB, (2) ACM4CB

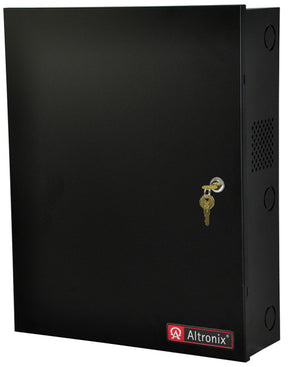

Altronix T1KE3F8D | 8-Door Altronix/Kisi Access and Power Integration Kit - Trove1LU1 with eFlow6NB, (2) ACM4CB

eFlow6NB Power Supply/Charger / Input

Voltage: 120VAC, 60Hz, 3.5A.
Fusing: 5A / 250V.

Output

Voltage: 24VDC.
Current: 6A continuous.
Other: Overvoltage protection. Filtered and regulated.

Battery Backup

Capacity: 7AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32V.
Failover: Upon AC loss, instantaneous.

Fire Alarm Disconnect

Supervised: Latching or non latching.
EOL: 10K Resistor.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators LED

Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

Two (2) ACM4CB Access Power Controllers / Input

Voltage: 24VDC from eFlow6NB.
Input Fuse: 10A / 32V.

Outputs

Voltage: 24VDC.
Four (4) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.

Outputs Ratings

PTCs: 2.5A.

Indicators (LED)

Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

90 BTU/Hr.
