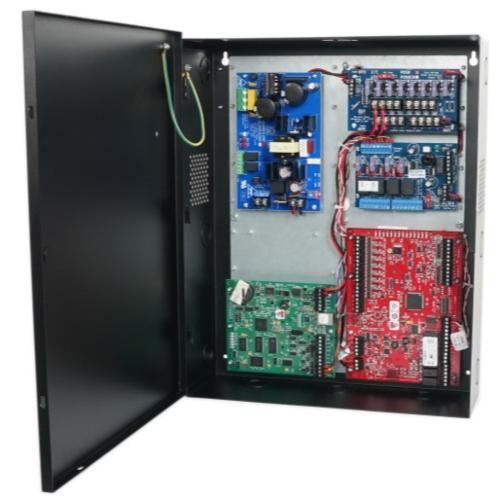

Altronix T1M1LCK2D | 2-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4CB, PDS8CB, VR6, RSB1
Regular price
$1,162.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1M1LCK2D | 2-Door Altronix/Mercury Access and Power Integ...
Regular price
$1,162.92
Unit price
Description
Description
Altronix T1M1LCK2D | 2-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4CB, PDS8CB, VR6, RSB1
Input Fuse: 5A / 250V.
Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 9A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input Fuse: 10A / 32V.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL400ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 3.5A max.Input Fuse: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.Input PTC: 9A.
Outputs
Voltage 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.Indicators LED
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL400ULXB2.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
ACM4CB Access Power Controller / Input
24VDC from AL400ULXB2.Input Fuse: 10A / 32V.
Outputs
Voltage: 24VDC.Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
PTCs: 2.5A.Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
90 BTU/Hr.Overview
- Altronix T1M1LCK2D is a 2-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK2D accommodates one (1) Intelligent Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Specifications
Specifications
Altronix - T1M1LCK2D - Overview
- Altronix T1M1LCK2D is a 2-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK2D accommodates one (1) Intelligent Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T1M1LCK2D - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - T1M1LCK2D - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T1M1LCK2D |
| Item Description | 2-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4CB, PDS8CB, VR6, RSB1 |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 18 Lbs. |
| (8.17 kg). | Shipping Weight: |
| 22 Lbs. | (9.98 kg). |
