Altronix T1PHK14SD | 4-Door Altronix/Openpath Access and Power Integration Kit - Trove1C1 with AL400ULXB2, ACM4CB, VR6, PDS8CB. Trove1 Series
Regular price
$919.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1PHK14SD | 4-Door Altronix/Openpath Access and Power Inte...
Regular price
$919.08
Unit price
Description
Description

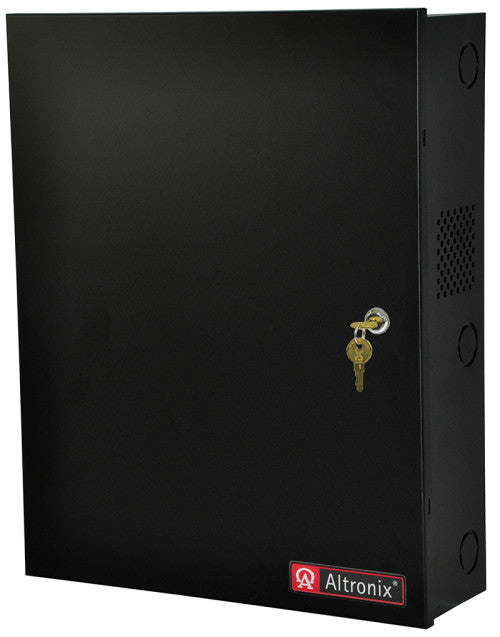

Altronix T1PHK14SD | 4-Door Altronix/Openpath Access and Power Integration Kit - Trove1C1 with AL400ULXB2, ACM4CB, VR6, PDS8CB. Trove1 Series
Input Fuse: 5A / 250V.
Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 10A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input Fuse: 5A/250V.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Four (4) auxiliary power outputs (unswitched).
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
24VDC: 77 BTU/Hr.
AL400ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 3.5A max.Input Fuse: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.Input PTC: 10A.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses 3A/32V.Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL400ULXB2.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
ACM4CB Access Power Controller / Input
24VDC from AL400ULXB2.Input Fuse: 5A/250V.
Outputs
Voltage: 24VDC.Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
PTCs: 2.5A.Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
12VDC: 40 BTU/Hr.24VDC: 77 BTU/Hr.
Overview
- Altronix T1PHK14SD kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC 4A or 24VDC @ 3A power supply/charger, one (1) PTC access power controller, one dual input power distribution module and one (1) voltage regulator. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T1PHK14SD - Overview
- Altronix T1PHK14SD kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC 4A or 24VDC @ 3A power supply/charger, one (1) PTC access power controller, one dual input power distribution module and one (1) voltage regulator. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1PHK14SD - Product Categories
- Security
- Access Control
- Panels
Altronix - T1PHK14SD - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T1PHK14SD |
| Item Description | 4-Door Altronix/Openpath Access and Power Integration Kit - Trove1C1 with AL400ULXB2, ACM4CB, VR6, PDS8CB. Trove1 Series |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 15.5 Lbs. |
| (7 kg). | Shipping Weight: |
| 19.5 Lbs. | (8.9 kg). |
