Altronix T1RAL33F16V | Rack Access and Power Integration Solution
Regular price
$1,979.22
Unit price
Brand: Altronix
|
SKU:
10561510
Regular price
$1,979.22
Unit price
Description
Description

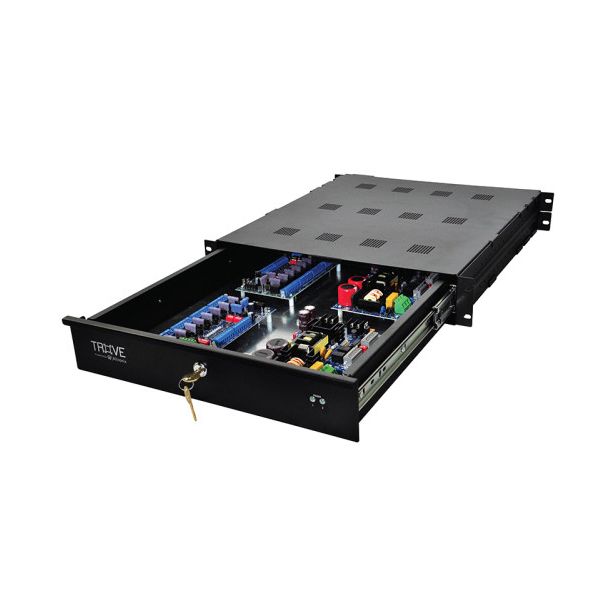

Altronix T1RAL33F16V | Rack Access and Power Integration Solution
Altronix T1RAL33F16 trove rack kit is pre-assembled and consists trove1R enclosure and TAL1R Altronix backplane with two (2) 12VDC or 24VDC @ 6A power supply/ chargers and two (2) eight (8) output fused dual output access control modules. trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1RAL33F16V - Features
- Power status LED on front panel
- Simplified board layout and wire management
- 6’ IEC320 3-wire power cord
- 2U drawer on extendable rails
- Black powder coated steel enclosure
- Included Z Bracket facilitates ease of wiring
- Includes cam lock, tamper switch and mounting hardware
- CE European Conformity
Specifications
Specifications
Altronix - T1RAL33F16V - Specifications
| NDAA Compliance | No |
|---|---|
| Output Protection | Fuse |
| Number of Outputs | 8 |
| Input Voltage | 120VAC |
| Power Options | 6 amp @ 12VDC, 6 amp @ 24VDC |
| Output Type | DC |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | – 20ºC to 70ºC (– 4ºF to 158ºF |
| Dimensions | 3.25” x 19.0” x 26.5” |
| Relative Humidity | 85% +/– 5% |
