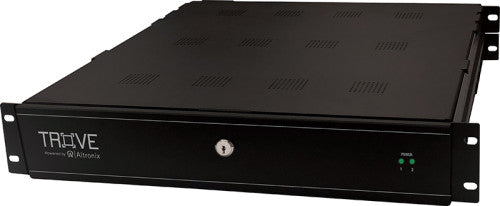

Altronix T1RM3F4DV | 4-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1R with eFlow6NBV, ACM4CB, PDS8CB, VR6
Fusing: 5A / 250V.
Current: 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on eFlow6NBV Power Supply board, PDS8CB Power Distribution Module’s and ACM4CB Access Power Controller’s outputs is 5.6A.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Fuse Rating: 10A @ 32VDC.
Failover: Upon AC loss, instantaneous.
EOL: 10K Resistor.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 9A.
Output PTCs: 2.5A.
Green: 12VDC
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Fusing: 10A / 250V.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Four (4) auxiliary power outputs (unswitched).
Output PTCs: 2.5A.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
eFlow6NBV Power Supply/Charger / Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A.Fusing: 5A / 250V.
Output
Voltage: Factory set at 24VDC.Current: 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on eFlow6NBV Power Supply board, PDS8CB Power Distribution Module’s and ACM4CB Access Power Controller’s outputs is 5.6A.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Type: Sealed lead acid or gel type.Fuse Rating: 10A @ 32VDC.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non latching.EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 220VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Power Distribution Module / Input
Voltage: 24VDC from eFlow6NBV and 12VDC from VR6.Input PTC: 9A.
Outputs
Voltage: 12 or 24VDC individually selectable.Output PTCs: 2.5A.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from eFlow6NBV.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.Output: Powered.
ACM4CB Access Power Controller / Input
Voltage: 24VDC from eFlow6NBV.Fusing: 10A / 250V.
Output
Voltage: 24VDC.Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Four (4) auxiliary power outputs (unswitched).
Output PTCs: 2.5A.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
115 BTU/Hr.Overview
- Altronix T1RM3F4DV kit consists of Trove1R enclosure and TM1R Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) output PTC dual output power distribution module and four (4) PTC protected output access control module. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. *Compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Specifications
Specifications
Altronix - T1RM3F4DV - Overview
- Altronix T1RM3F4DV kit consists of Trove1R enclosure and TM1R Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) output PTC dual output power distribution module and four (4) PTC protected output access control module. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. *Compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
