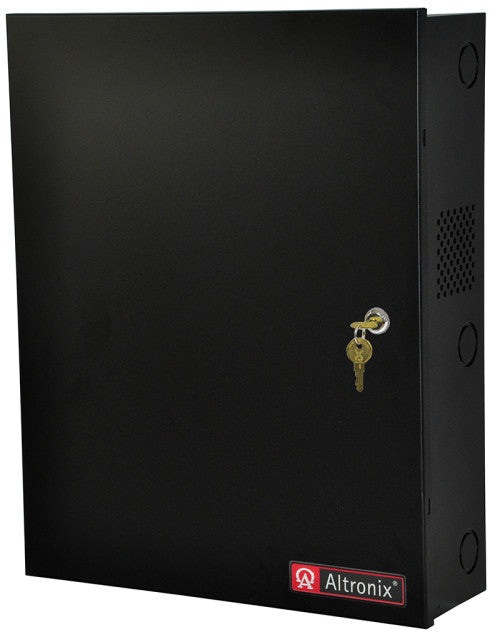

Altronix T1VK34D | 4-Door Altronix/HID VertX Access and Power Integration Kit - Trove1V1 with AL600ULXB, VR6, PDS8CB

Altronix T1VK34D | 4-Door Altronix/HID VertX Access and Power Integration Kit - Trove1V1 with AL600ULXB, VR6, PDS8CB

AL600ULXB Power Supply/Charger / Input

Voltage: 115VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.

Outputs

Voltage: 12VDC or 24VDC selectable.
Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.

Battery Backup

Capacity: 7AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.

Indicators LED

Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

VR6 Voltage Regulator / Input

Voltage: 24VDC from AL600ULXB.

Output

Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.

Indicators LED

Input: 24VDC is present.
Output: Powered.

PDS8CB Dual Input Power Distribution Module / Input

Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
Input PTC: 9A.

Outputs

Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.

Outputs Ratings

PTCs: 2.5A.

Indicators (LED)

DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

87 BTU/Hr.
