Description

Altronix T2428100CP220 | Open Frame Transformer, 24/28VAC @ 100VA, 220VAC, BC100 Enclosure

Altronix T2428100CP220 AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Altronix - T2428100CP220 - Features and Specifications

INPUT
220VAC 50/60Hz, 0.5A.
In-line fuse rated @ 3.5A/250V.
Fused input protection.
OUTPUT
24VAC @ 4A or 28VAC @ 3.5A supply current.
Green grounding lead.

Specifications

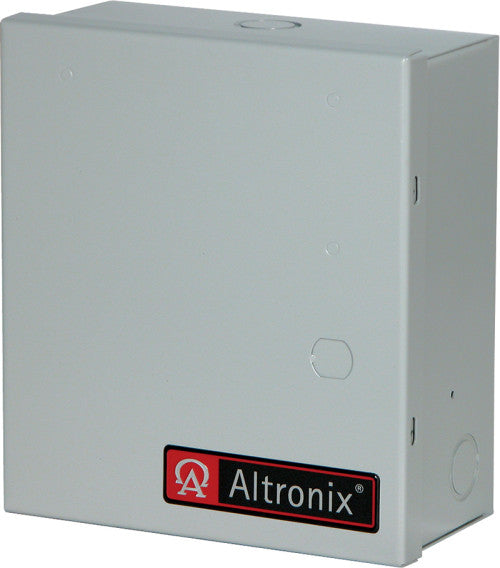

Altronix - T2428100CP220 - Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Altronix - T2428100CP220 - Temperature

Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 50 BTU/Hr.
System AC input VA requirement: 110VA.

Altronix - T2428100CP220 - Specifications

Sales Category	POWER SUPPLY
UNSPSC Code	43211700

Altronix - T2428100CP220 - Weights (approximate)

Product Weight:	6.5 Lbs. (2.94 kg).
Shipping Weight	7.1 Lbs. (3.22 kg).
