Altronix T2428175 | Open Frame Transformer, 24/28VAC @ 175VA, 115VAC
Regular price
$138.59
Unit price
Brand: Altronix
|
SKU:
10115915
Regular price
$138.59
Unit price
Description
Description

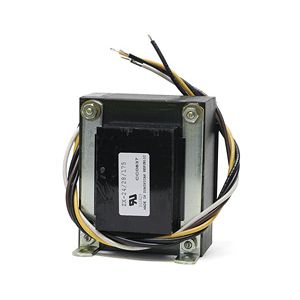

Altronix T2428175 | Open Frame Transformer, 24/28VAC @ 175VA, 115VAC
Altronix T2428175 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Altronix - T2428175 - Features
- Input: 115 VAC 50/60Hz
- Output: 24VAC/175 VA (7.25 amp) or 28VAC/175 VA (6.25 amp)
- Screw down mounting feet
- Dimensions: 5 x 4 x 4
- Weight: 6 lbs
Specifications
Specifications
Altronix - T2428175 - Overview
- Input
- 115VAC 50/60 Hz, 1.6A.
- Output
- 24VAC/175VA (7.25A) or 28VAC/185VA (6.25A) supply current.
- Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 90 BTU/Hr.
- System AC input VA requirement: 184VA.
Altronix - T2428175 - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Dimensions (approximate) | 3.8"W x 3.2"L x 3.1"H (97 mm W x 81 mm L x 79 mm H). |
Altronix - T2428175 - Weights (approximate)
| Product Weight | 5.4 Lbs. (2.45 kg). |
|---|---|
| Shipping Weight | 8.05 Lbs. (2.79 kg). |
