Brand: Altronix
|
SKU:
10350741

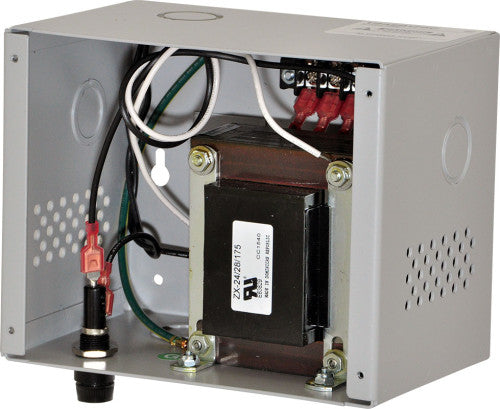

Altronix T2428175C220 | Open Frame Transformer, 24/28VAC @ 175VA, 220VAC, CAB4 Enclosure
Regular price
$211.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2428175C220 | Open Frame Transformer, 24/28VAC @ 175VA, 2...
Regular price
$211.07
Unit price
Description
Description
Altronix T2428175C220 AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Main Features
- Fused input protection.
- Green grounding lead.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7"W x 5.62"H x 4.5"D (178 mm W x 143 mm H x 114 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC 50/60 Hz, 0.8A.
- Fused input protection rated @ 5A/250V.
Output
- 24VAC/175VA (7.25A) or 28VAC/185VA (6.25A) supply current.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 24VAC: 89 BTU/Hr.
- 28VAC: 95 BTU/Hr.
- System AC input VA requirement: 176 VA.
Weights (approximate)
| Product Weight | 5 Lbs. (2.27 kg). |
|---|---|
| Shipping Weight | 5.7 Lbs. (2.59 kg). |
