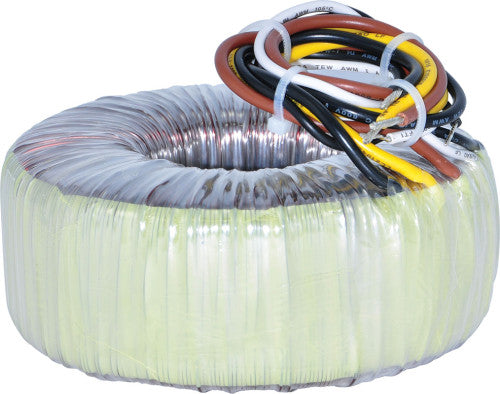

Altronix T2428300220 | Open Frame Transformer, 24/28VAC @ 300VA, 22...
Regular price
$216.15
Unit price
Brand: Altronix
|
SKU:
10216046
Regular price
$216.15
Unit price
Description
Description
Altronix T2428300220 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Specifications
Specifications
Dimensions (approximate)
- 3.25"W x 5.15"L x 5.1"H (82.6 mm W x 130.8 mm L x 129.5 mm H).
Input
- 220VAC 50/60 Hz, 1.4A.
Output
- 24VAC/300VA (14A) or 28VAC/300VA (12.5A) supply current.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 154 BTU/Hr.
- System AC input VA reuirement: 308VA.
Weights (approximate)
| Product Weight | 6.95 Lbs. (3.15 kg). |
|---|---|
| Shipping Weight | 7.55 Lbs. (3.42 kg). |
