Brand: Altronix
|
SKU:
424694

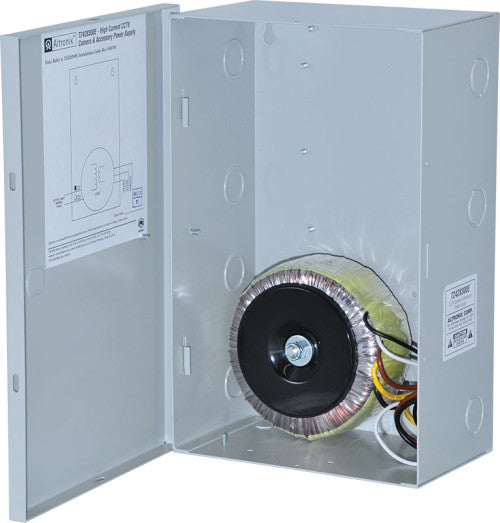

Altronix T2428300E | Open Frame Transformer, 24/28VAC @ 300VA, 115VAC, BC200 Enclosure
Regular price
$273.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2428300E | Open Frame Transformer, 24/28VAC @ 300VA, 115V...
Regular price
$273.37
Unit price
Description
Description
Altronix T2428300E AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Main Features
- Fused input protection.
- Green grounding lead.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC 50/60 Hz, 2.7A.
- Fused input protection rated @ 5A/250V.
Output
- 24VAC @ 14A or 28VAC @ 12.5A supply current.
Temperature
- Operating 0° C to 49° C ( 32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 24VAC: 172 BTU/Hr.
- 28VAC: 179 BTU/Hr.
- System AC input VA requirement: 310.5 VA.
Weights (approximate)
| Product Weight | 7.2 Lbs. (3.27 kg). |
|---|---|
| Shipping Weight | 8.5 Lbs. (3.86 kg). |
