Brand: Altronix
|
SKU:
10350999

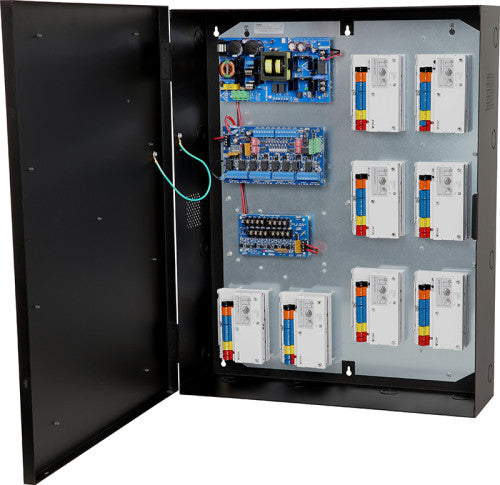

Altronix T2AXK7F8SD | 8-Door Altronix/Axis Access and Power Integration Kit - Trove2AX2 with eFlow104NB, ACMS8CB, VR6, PDS8CB
Regular price
$1,434.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2AXK7F8SD | 8-Door Altronix/Axis Access and Power Integra...
Regular price
$1,434.72
Unit price
Description
Description
Altronix T2AXK7F8SD | 8-Door Altronix/Axis Access and Power Integration Kit - Trove2AX2 with eFlow104NB, ACMS8CB, VR6, PDS8CB
Main Fuse: 6.5A / 250V.
Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Fuse Rating: 10A/32V.
Failover: Upon AC loss, instantaneous.
EOL: 10K Resistor.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
DC Output: Powered.
Input PTC: 9A.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Green LED: FACP disconnect is triggered.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input PTC: 9A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
eFlow104NB Power Supply/Charger / Input
Voltage: 120VAC, 60Hz, 4.5A max.Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC.Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Type: Sealed lead acid or gel type.Fuse Rating: 10A/32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.DC Output: Powered.
ACMS8CB Dual Input Access Power Controller / Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
VR6 Voltage Regulator / Input
Voltage: 24VDC from eFlow104NB.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
PDS8CB Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from eFlow104NB.Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5A.Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
77 BTU/Hr.Overview
- Altronix T2AXK7F8SD kit consists of Trove2 enclosure, TAX2 Axis Communications/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) eight (8) PTC protected dual input/output access control module, one (1) 12VDC voltage regulator and one (1) eight (8) PTC protected dual input/output power distribution module. This kit also accommodates up to four (4) A1601 or A1610 modules or eight (8) A1210-B for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2AXK7F8SD - Overview
- Altronix T2AXK7F8SD kit consists of Trove2 enclosure, TAX2 Axis Communications/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) eight (8) PTC protected dual input/output access control module, one (1) 12VDC voltage regulator and one (1) eight (8) PTC protected dual input/output power distribution module. This kit also accommodates up to four (4) A1601 or A1610 modules or eight (8) A1210-B for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2AXK7F8SD - Product Categories
- Security
- Access Control
- Panels
Altronix - T2AXK7F8SD - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2AXK7F8SD |
| Item Description | 8-Door Altronix/Axis Access and Power Integration Kit - Trove2AX2 with eFlow104NB, ACMS8CB, VR6, PDS8CB |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 49.8 Lbs. |
| (22.59 kg). | Shipping Weight: |
| 53.55 Lbs. | (24.29 kg). |
