Altronix T2AXK7F8SDV | 8-Door Altronix/Axis Access and Power Integration Kit
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2AXK7F8SDV | 8-Door Altronix/Axis Access and Power Integr...
Description
Description

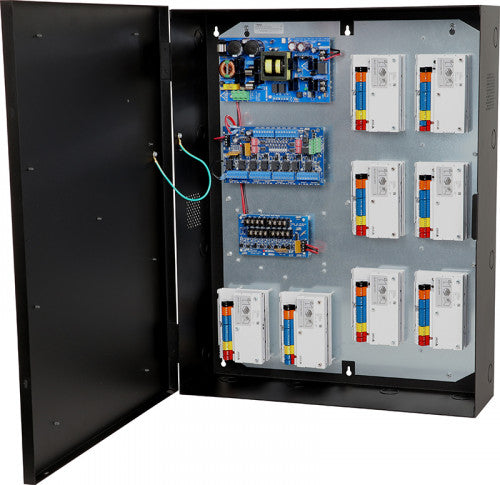

Altronix T2AXK7F8SDV kit consists of Trove2 enclosure, TAX2 Axis Communications/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) eight (8) PTC protected dual input/output access control module, one (1) 12VDC voltage regulator and one (1) eight (8) PTC protected dual input/output power distribution module. This kit also accommodates up to four (4) A1601 or A1610 modules or eight (8) A1210-B for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2AXK7F8SDV - Specifications
| Input Volage | 220VAC |
|---|---|
| Fire Alarm Disconnect | Latching or non-latching |
| Battery Charging | 12AH/12VDC |
| Supervision | Form “C” contacts |
| Indicators LED | 220VAC is present |
| Outputs Ratings | PTCs are rated 9A |
| Indicators | DC Output: Eight (8) individual output LEDs |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Storage Temperature | 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 77 BTU/Hr |
