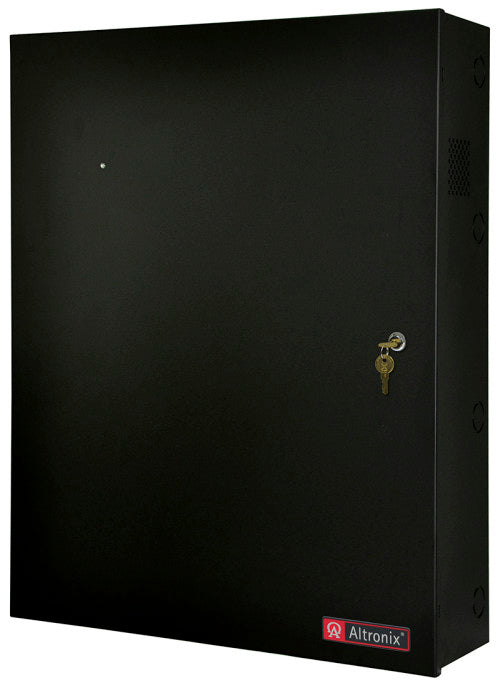

Altronix T2CVK33F10 | 10-Door Access and Power Integration Kit - Trove2CV2 with 2-eFlow6NB, 2-MOM5

Altronix - T2CVK33F10 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: 12VDC or 24VDC selectable.
• Current: 6A continuous max.
• Auxiliary: Power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Indicators LED
• Input: 120VAC is present.
• DC Output: Powered.
• Two (2) MOM5 Power Distribution Modules with Fire Alarm Interface
• INPUT
• Voltage: 12VDC or 24VDC from power supply.
• OUTPUT
• Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
• Voltage: 12VDC or 24VDC.
• Current: 2.5A continuos supply current. Current limit is 2A per output.
• Other: Short circuit and thermal overload protection. Filtered and regulated.
• Fire Alarm Interface
• Fire Alarm Panel or Access Control System trigger inputs N.O. or N.C. supervised trigger input and polarity reversal trigger input.
• Supervision
• Power Failure: Form “C” contact rated 1A 28VDC/115VAC.
• Trigger: Form “C” contact rated 1A 28VDC/115VAC.
• Indicators (LED)
• Input: Power is present.
• Input Trigger: On.
• Outputs (Individual LEDs): Output fail.
