Brand: Altronix
|
SKU:
10062028

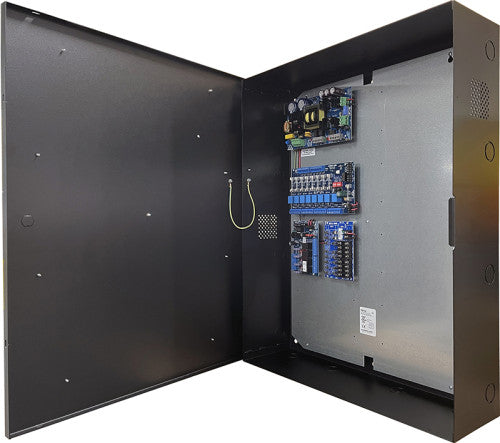

Altronix T2CVK7F10 | 10-Door CDVI Access and Power Integration Kit - Trove2CV2 with eFlow104NB, ACM8, ACM4, PD8UL
Regular price
$1,249.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2CVK7F10 | 10-Door CDVI Access and Power Integration Kit ...
Regular price
$1,249.21
Unit price
Description
Description
Altronix T2CVK7F10 | 10-Door CDVI Access and Power Integration Kit - Trove2CV2 with eFlow104NB, ACM8, ACM4, PD8UL
Altronix T2CVK7F10 kit consists of Trove2 enclosure, TCV2 CDVI/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-output fused access power controller, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to ten (10) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T2CVK7F10 kit consists of Trove2 enclosure, TCV2 CDVI/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-output fused access power controller, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to ten (10) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2CVK7F10 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Input Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- ACM8 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 32V.
- OUTPUT
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Eight (8) auxiliary power outputs (unswitched).
- Output Fuses: 3.5A/250V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- ACM4 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A/320V.
- OUTPUT
- Voltage: 24VDC.
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
- b) Four (4) dry form “C” 5A rated relay outputs.
- c) Any combination of the above.
- Four (4) auxiliary power outputs (unswitched).
- Output Fuses: 3A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- PDS8UL Power Distribution Module
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Outputs
- Voltage: 24VDC.
- Eight (8) fuse protected outputs.
- 3.5A per output max.
- Output Fuses: 3.5A/250V.
- Indicators (LED)
- Green LED: DC Output.
Specifications
Specifications
Altronix - T2CVK7F10 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T2CVK7F10 - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 131 BTU/Hr.
Altronix - T2CVK7F10 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T2CVK7F10 - Weights (approximate)
| Product Weight: | 54.7 Lbs. (24.8 kg). |
|---|---|
| Shipping Weight | 59.7 Lbs. (27.1 kg). |
Altronix - T2CVK7F10 - Accessories
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
| WM5 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM100 | Magnetic Cable Tie Mounts |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
