Altronix T2DK7F16D | 16-Door Altronix/DIN Rail Access and Power Int...
Description
Description

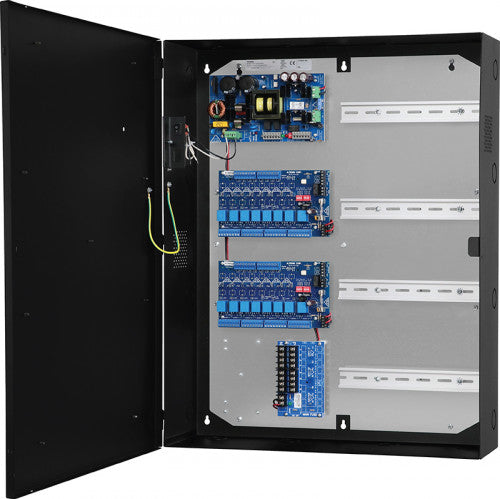

Altronix T2DK7F16D kit consists of Trove2 enclosure and TDR2 Altronix/DIN Rail backplane with 24VDC @ 10A power supply/charger, sixteen (16) PTC protected access control module and eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2DK7F16D - Features
- 24VDC power supply/charger
- Accommodates any DIN Rail mountable products
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to two (2) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T2DK7F16D - Specifications
| Input Voltage | 120VAC, 60Hz. 4.5A |
|---|---|
| Input Fuse | 6.3A/250V |
| Output Voltage | 24VDC |
| Battery Charging Capacity | 12VDC/12AH (2 within enclosure) 40AH/65AH (requires separate enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| DC Output | Powered |
| Input Fuse | 10A/250V |
| Relative Humidity: | 85% +/– 5% |
| Dimensions (H x W x D) | 27.25" x 21.5" x 6.5" (692.2mm x 546.1mm x 165.1mm) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | 20ºC to 70ºC (– 4ºF to 158ºF) |
| Weight (approx.) | 40.1 lb. (18.2 kg) |
| BTU/Hr. (approx.) | 145 BTU/Hr |
