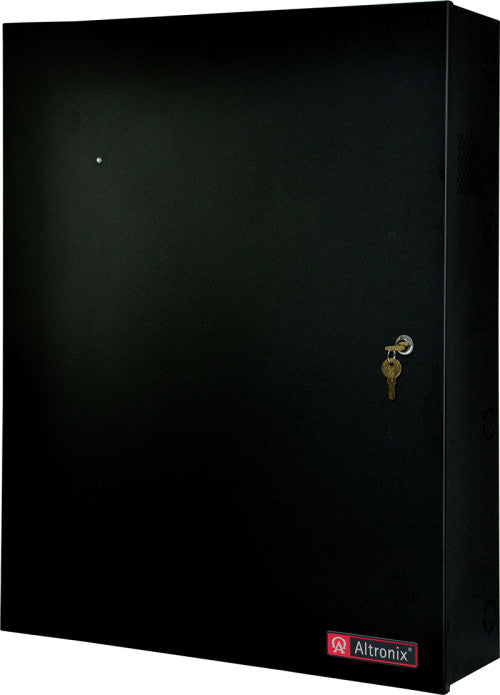

Altronix T2DMK78 | 8-Door Access and Power Integration Kit - Trove2DM2 with AL1024ULXB2, ACM8, VR6, PDS8

Altronix - T2DMK78 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 115VAC 60Hz, 4.2A max.
• Main Fuse: 5A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Current: 10A @ 24VDC continuous max.
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• PDS8 Dual Input Power Distribution Module
• INPUT
• Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
• Main Fuse: 10A / 32V.
• OUTPUT
• Voltage: 12VDC and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output Fuses: 3A / 32V.
• Indicators (LED)
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.
• VR6 Voltage Regulator
• INPUT
• Voltage: 24VDC from AL1024ULXB2.
• OUTPUT
• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.
• Indicators (LED)
• Input: 24VDC is present.
• Output: Powered.
• ACM8 Access Power Controller
• INPUT
• Voltage: 24VDC from AL1024ULXB2.
• Main Fuse: 10A / 32V.
• Outputs
• Voltage: 24VDC.
• Eight (8) independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 32VDC.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
