Altronix T2HWK7F8D | 8-Door Access and Power Integration Kit - Trove2HW2 with eFlow104NB, ACM8CB, VR6, PDS8CB

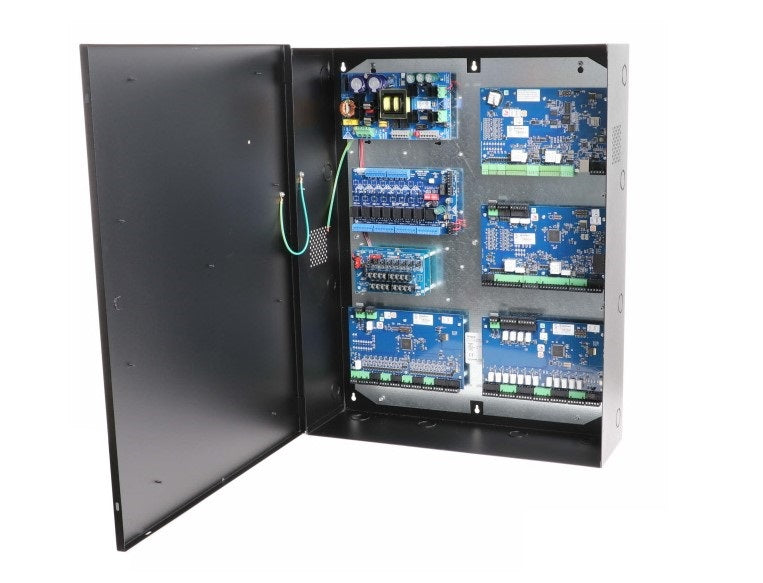

Altronix T2HWK7F8D kit consists of Trove2 enclosure, THW2 Honeywell/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module.This kit also accommodates up to four (4) Honeywell 3200 Series or WIN-PAK Series boards and up to two (2) Honeywell PW6K1ICE or PW6K1R1E boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T2HWK7F8D kit consists of Trove2 enclosure, THW2 Honeywell/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module.This kit also accommodates up to four (4) Honeywell 3200 Series or WIN-PAK Series boards and up to two (2) Honeywell PW6K1ICE or PW6K1R1E boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2HWK7F8D - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 10A continuous.
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
- PDS8CB Dual Input Power Distribution Module
- INPUT
- Voltage: 12VDC from VR6 and 24VDC from eFlow104NB.
- Input PTC: 9A.
- OUTPUT
- Voltage: 12 and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- PTCs: 2.5A.
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- VR6 Voltage Regulator
- INPUT
- Voltage: 24VDC from eFlow104NB.
- OUTPUT
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- ACM8CB Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 250V.
- Outputs
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output PTCs
- 2.5A.
Specifications
Specifications
Altronix - T2HWK7F8D - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T2HWK7F8D - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 128 BTU/Hr.
Altronix - T2HWK7F8D - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T2HWK7F8D - Weights (approximate)
| Product Weight: | 54.3 Lbs. (24.6 kg). |
|---|---|
| Shipping Weight | 59.3 Lbs. (26.9 kg). |
Altronix - T2HWK7F8D - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
