Brand: Altronix
|
SKU:
10265941

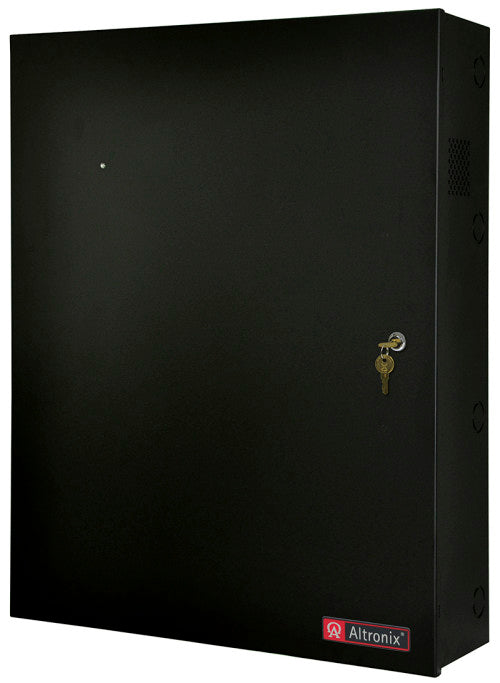

Altronix T2KE33F16D | 16-Door Altronix/Kisi Access and Power Integration Kit - Trove2LU2 with (2) eFlow6NB, (2) ACM8CB
Regular price
$1,534.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2KE33F16D | 16-Door Altronix/Kisi Access and Power Integr...
Regular price
$1,534.73
Unit price
Description
Description
Altronix T2KE33F16D | 16-Door Altronix/Kisi Access and Power Integration Kit - Trove2LU2 with (2) eFlow6NB, (2) ACM8CB
Fusing: 5A / 250V.
Current: 6A continuous max.
Auxiliary: Power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32V.
Failover: Upon AC loss, instantaneous.
EOL: 10K Resistor.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
DC Output: Powered.
Main Fuse: 10A / 250V.
Eight (8) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
24VDC: 148 BTU/Hr.
12VDC and 24VDC: 111 BTU/Hr.
Two (2) eFlow6NB Power Supply/Chargers / Input
Voltage: 120VAC, 60Hz, 3.5A.Fusing: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.Current: 6A continuous max.
Auxiliary: Power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH/12VDC (Up to 4 within enclosure) 40AH/65AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non latching.EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.DC Output: Powered.
Two (2) ACM8CB Access Power Controllers / Input
Voltage: 24VDC from eFlow6NB.Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
12VDC: 74 BTU/Hr.24VDC: 148 BTU/Hr.
12VDC and 24VDC: 111 BTU/Hr.
Overview
- Altronix T2KE33F16D kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two (2) eight (8) PTC protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2KE33F16D - Overview
- Altronix T2KE33F16D kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two (2) eight (8) PTC protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2KE33F16D - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - T2KE33F16D - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2KE33F16D |
| Item Description | 16-Door Altronix/Kisi Access and Power Integration Kit - Trove2LU2 with (2) eFlow6NB, (2) ACM8CB |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 54.7 Lbs. |
| (24.8 kg). | Shipping Weight: |
| 59.7 Lbs. | (27.1 kg). |
