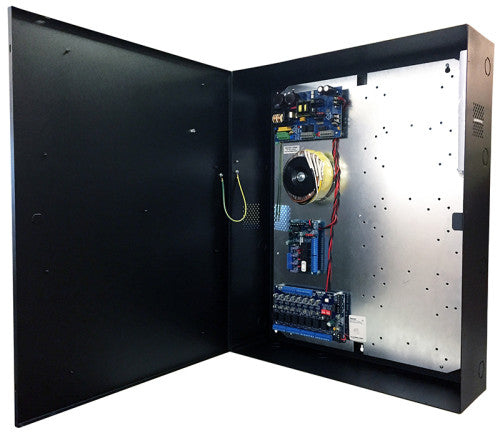

Altronix T2KHK3F12 | 12-Door Access and Power Integration Kit - Trove2KH2 with eFlow6NB, T1618300K, ACM4, ACM8

Altronix - T2KHK3F12 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: 12VDC or 24VDC selectable.
• Current: 6A continuous max.
• Auxiliary: Power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non latching.
• EOL: 10K Resistor.
• Indicators LED
• Input: 120VAC is present.
• DC Output: Powered.
• ACM4 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow6NB.
• Main Fuse: 10A / 32V.
• OUTPUT
• Voltage: 24VDC.
• Four (4) independently controlled 2.5A outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Four (4) dry form “C” 5A rated relay outputs.
• c) Any combination of the above.
• Four (4) auxiliary power outputs (unswitched).
• Output Rating: 3A / 32VDC.
• Indicators (LED's)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• ACM8 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow6NB.
• Input Fuse: 10A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Eight (8) independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 250V.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• T1618300K Transformer
• INPUT
• Voltage: 115VAC, 50/60Hz, 2.7A.
• OUTPUT
• Voltage: 16VAC/300VA (18.7A) or 18VAC/300VA (16.7A).
