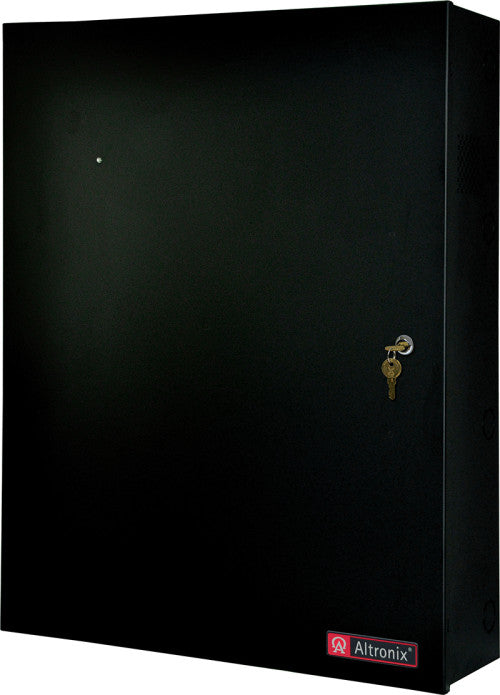

Altronix T2KK38 | 8-Door Access and Power Integration Kit - Trove2DM2 with AL600ULXB, ACM8, T16100
Regular price
$947.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2KK38 | 8-Door Access and Power Integration Kit - Trove2D...
Regular price
$947.84
Unit price
Description
Description
Altronix T2KK38 | 8-Door Access and Power Integration Kit - Trove2DM2 with AL600ULXB, ACM8, T16100
Altronix T2KK38 kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) fused access power controller, and one (1) 16VAC transformer.This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T2KK38 kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) fused access power controller, and one (1) 16VAC transformer.This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2KK38 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 115VAC, 60Hz, 3.5A max.
- Fusing: 5A / 250V.
- OUTPUT
- Voltage: 12VDC or 24VDC selectable.
- Current: 6A @ 12VDC or 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 7AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- T16100 Transformer
- INPUT
- Voltage: 115VAC, 50/60Hz, 1A.
- OUTPUT
- Voltage: 16VAC/100VA. 6.25A supply current.
- ACM8 Access Power Controller
- INPUT
- Voltage: 24VDC from AL600ULXB.
- Input Fuse: 10A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 250V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T2KK38 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T2KK38 - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 111 BTU/Hr.
Altronix - T2KK38 - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T2KK38 - Weights (approximate)
| Product Weight: | 40.9 Lbs. (18.55 kg). |
|---|---|
| Shipping Weight | 46.9 Lbs. (21.27 kg). |
Altronix - T2KK38 - Accessories
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
|---|---|
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
