Brand: Altronix
|
SKU:
10343946

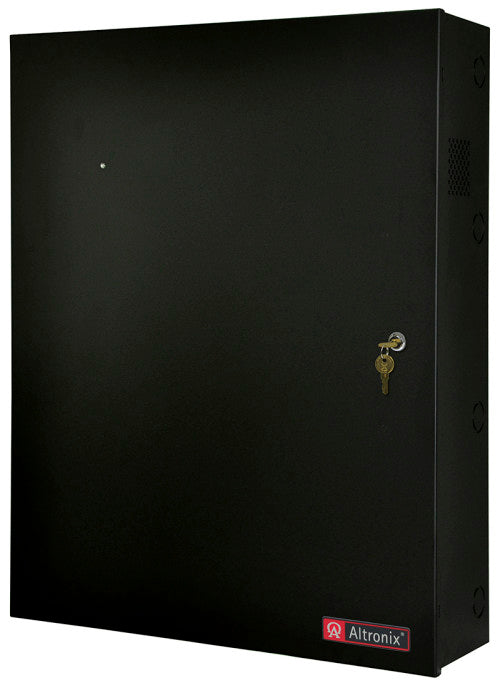

Altronix T2KK38D | 8-Door Altronix/Keyscan Access and Power Integration Kit - Trove2KA2 with AL600ULXB, ACM8CB, T16100
Regular price
$957.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2KK38D | 8-Door Altronix/Keyscan Access and Power Integra...
Regular price
$957.32
Unit price
Description
Description
Altronix T2KK38D | 8-Door Altronix/Keyscan Access and Power Integration Kit - Trove2KA2 with AL600ULXB, ACM8CB, T16100
Fusing: 5A / 250V.
Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input Fuse: 10A / 250V.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL600ULXB Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 3.5A max.Fusing: 5A / 250V.
Output
Voltage: 12VDC or 24VDC selectable.Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 7AH / 12VDC (up to 2 within enclosure); 40 AH / 65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
T16100 Transformer / Input
Voltage: 115VAC, 50/60Hz, 1A.Output
Voltage: 16VAC/100VA. 6.25A supply current.ACM8CB Access Power Controller / Input
Voltage: 24VDC from AL600ULXB.Input Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
111 BTU/Hr.Overview
- Altronix T2KK38D kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) PTC access power controller, and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2KK38D - Overview
- Altronix T2KK38D kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) PTC access power controller, and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2KK38D - Product Categories
- Security
- Access Control
- Panels
Altronix - T2KK38D - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2KK38D |
| Item Description | 8-Door Altronix/Keyscan Access and Power Integration Kit - Trove2KA2 with AL600ULXB, ACM8CB, T16100 |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 40.9 Lbs. |
| (18.55 kg). | Shipping Weight: |
| 46.9 Lbs. | (21.27 kg). |
