Altronix T2KK3F8 | 8-Door Access and Power Integration Kit - Trove2KA2 with eFlow6NB, ACM8, T16100
Regular price
$979.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2KK3F8 | 8-Door Access and Power Integration Kit - Trove2...
Regular price
$979.11
Unit price
Description
Description

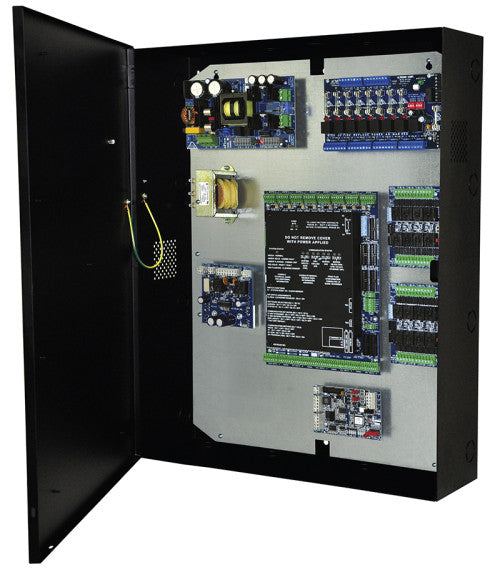

Altronix T2KK3F8 | 8-Door Access and Power Integration Kit - Trove2KA2 with eFlow6NB, ACM8, T16100
Altronix T2KK3F8 kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) fused access power controller, and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T2KK3F8 kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) fused access power controller, and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2KK3F8 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Input Fuse: 5A / 250V.
- OUTPUT
- Voltage: Factory set at 24VDC.
- Current: 6A continuous.
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- T16100 Transformer
- INPUT
- Voltage: 115VAC, 50/60Hz, 1A.
- OUTPUT
- Voltage: 16VAC/100VA. 6.25A supply current.
- ACM8 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow6NB.
- Input Fuse: 10A / 250V.
- Outputs
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 250V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T2KK3F8 - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T2KK3F8 - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 111 BTU/Hr.
Altronix - T2KK3F8 - Specifications
| Amp Hours | 11 TO 15 |
|---|---|
| Amps | 5.1 TO 10.0 |
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| Input Voltage | 120V AC |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - T2KK3F8 - Weights (approximate)
| Product Weight: | 40.9 Lbs. (18.55 kg). |
|---|---|
| Shipping Weight | 46.9 Lbs. (21.27 kg). |
Altronix - T2KK3F8 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
