Altronix T2LMK7F8N | 8-Door Altronix/LiftMaster Access and Power In...
Description
Description

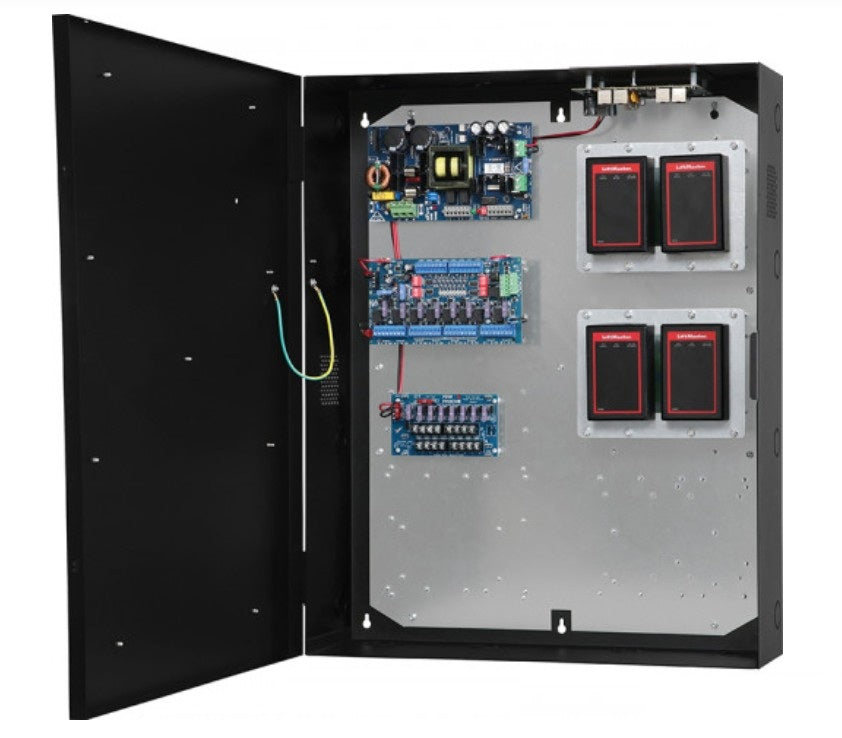

Altronix T2LMK7F8N kit consists of Trove2 enclosure and TM2 Altronix & LiftMaster backplane with 24VDC @ 10A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module, eight (8) dual voltage fuse protected output access control module and 5-Port Hardened PoE+ Switch. This kit also accommodates up to four (4) LiftMaster Smart Access 2-Door Controller (CAP2D) for up to eight (8) doors in a single enclosure. Two (2) LMBK2 mounting brackets for LiftMaster CAP2D are factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2LMK7F8N - Features
- 24VDC power supply/charger
- Accommodates up to four (4) LiftMaster Smart Access 2-Door Controller (CAP2D)
- Convenient knockout configuration:- One (1) single knockout 2.415" (2" Conduit)
- Sixteen (16) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Low Battery and Battery Presence
- Low power shutdown
- CE European Conformity
Specifications
Specifications
Altronix - T2LMK7F8N - Specifications
| Input Voltage | 120VAC, 60Hz. 4.5A |
|---|---|
| Input Fuse | 6.3A/250V |
| Output Voltage | 24VDC |
| Battery Charging Capacity | 12VDC/12AH (4 within enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| Input | 24VDC is present |
| Input Fuses | 10A/32V |
| Power Output Maximum Power | Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 30W) ports |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Connectivity: | RJ45, auto-crossover |
| Wire type: | 4-pair CAT5e or higher structured cable |
| Distance: | up to 100m |
| Weight (approx.) | 40.1 lb. (18.2 kg) |
| Relative Humidity: | 85% +/– 5% |
| BTU/Hr. (approx.) | 145 BTU/Hr |
