Altronix T2M7CK3 | 8-Door Altronix/Mercury Access and Power Integra...
Description
Description

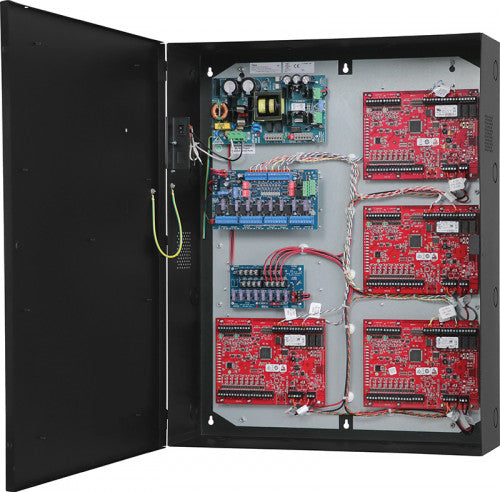

Altronix T2M7CK3 is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7CK3 accommodates four (4) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Specifications
Specifications
Altronix - T2M7CK3 - Specifications
| Input Voltage | 120VAC, 60Hz, 4.5A max. |
|---|---|
| Main Fuse | 6.3A / 250V. |
| Capacity | 12VDC/7AH (2 within enclosure); 40AH/65AH (requires separate enclosure). |
| Type | Sealed lead acid or gel type. |
| Failover | Upon AC loss, instantaneous |
| Supervised | Latching or non-latching. |
| EOL | 10K Resistor. |
| AC Input | 120VAC is present. |
| DC Output | 24VDC is present. |
| Outputs Voltage | 12 or 24VDC individually selectable. |
| Environmental Temperature Operating | 0° C to 49° C (32° F to 120° F). |
| Storage | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 145 BTU/Hr. |
| Dimensions | 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D). |
| Product Weight | 41.6 Lbs. (18.87 kg). |
| Shipping Weight | 45.6 Lbs. (20.68 kg). |
