Altronix T2M7CK3D | 8-Door Altronix/Mercury Access and Power Integr...
Description
Description

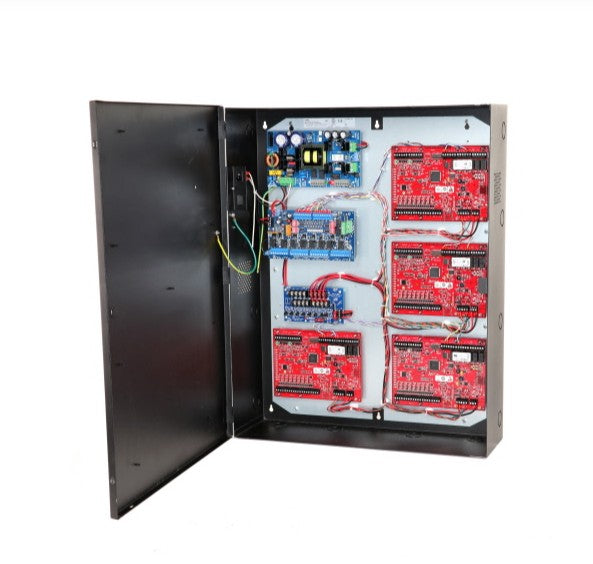

Altronix T2M7CK3D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7CK3D accommodates four (4) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T2M7CK3D - Features
- Accommodates the following Mercury controllers: 4 - MR52
- Removable backplane
- Wire management
- Custom wire assemblies for power distribution with terminal blocks for controller connections
Specifications
Specifications
Altronix - T2M7CK3D - Specifications
| Input Voltage | 120VAC, 60Hz. 4.5A |
|---|---|
| Input Fuse | 6.3A/250V |
| Output Voltage | 24VDC, 10A |
| Battery Charging Capacity | 12VDC/12AH (2 within enclosure) 40AH/65AH (requires separate enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| DC Output | 24VDC is present |
| Input PTC | 9A |
| Relative Humidity: | 85% +/– 5% |
| Dimensions (H x W x D) | 27.25" x 21.5" x 6.5" (692.2mm x 546.1mm x 165.1mm) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage Temperature | 20ºC to 70ºC (– 4ºF to 158ºF) |
| Weight (approx.) | 41.6 lb. (18.87 kg) |
| BTU/Hr. (approx.) | 145 BTU/Hr |
