Brand: Altronix
|
SKU:
10343981
Altronix T2M7LXK2 | 6-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with AL1024ULXB2, ACMS8, PDS8, VR6, RSB1
Regular price
$2,153.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2M7LXK2 | 6-Door Altronix/Mercury Access and Power Integr...
Regular price
$2,153.30
Unit price
Description
Description
Altronix T2M7LXK2 | 6-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with AL1024ULXB2, ACMS8, PDS8, VR6, RSB1
Main Fuse: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input Fuse: 10A / 250V.
Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Green LED: FACP disconnect is triggered.
Input Fuse: 10A / 32V.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC.
Red: 24VDC.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL1024ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 4.2A max.Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL1024ULXB2.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
ACMS8 Dual Input Access Power Controller / Input
Voltage: 24VDC from AL1024ULXB2.Input Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
Fuses: 3.5A/250V.Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
PDS8 Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.Input Fuse: 10A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.Indicators (LED's)
DC Output: Eight (8) individual output LEDs.Green: 12VDC.
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
145 BTU/Hr.Overview

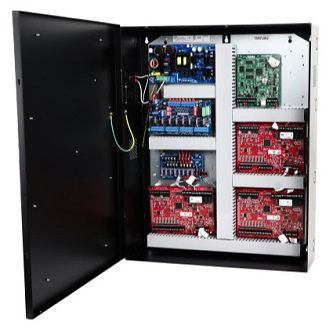

- Altronix T2M7LXK2 is a 6-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK2 accommodates one (1) Intelligent Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Specifications
Specifications
Altronix - T2M7LXK2 - Overview
- Altronix T2M7LXK2 is a 6-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK2 accommodates one (1) Intelligent Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Altronix - T2M7LXK2 - Product Categories
- Security
- Access Control
- Panels
Altronix - T2M7LXK2 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2M7LXK2 |
| Item Description | 6-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with AL1024ULXB2, ACMS8, PDS8, VR6, RSB1 |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 41.6 Lbs. |
| (18.87 kg). | Shipping Weight: |
| 45.6 Lbs. | (20.68 kg). |
