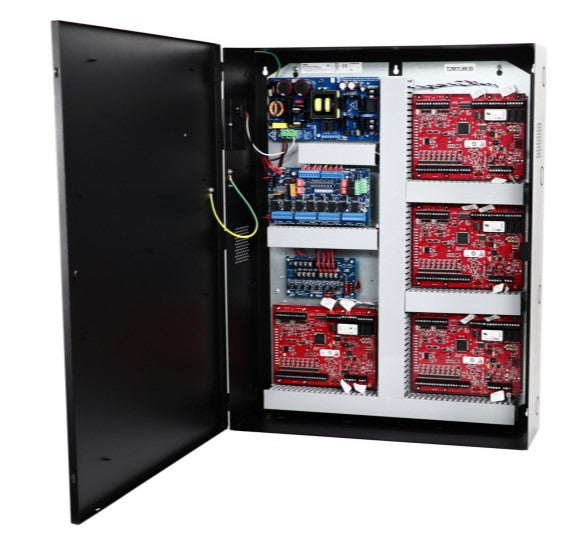

Altronix T2M7LXK3D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK3D accommodates four (4) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Altronix - T2M7LXK3D - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/7AH Batteries.
- 3/4" and 1" combination knockouts.
Specifications
Specifications
Altronix - T2M7LXK3D - Overview
- AL1024ULXB2 Power Supply/Charger
- Input
- Voltage: 115VAC, 60Hz, 4.2A max.
- Main Fuse: 5A / 250V.
- Output
- Voltage: 24VDC.
- Current: 10A @ 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators LED
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from AL1024ULXB2.
- Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- ACMS8CB Dual Input Access Power Controller
- Input
- Voltage: 24VDC from AL1024ULXB2.
- Input PTC: 9A.
- Outputs
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form "C" Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Outputs Ratings
- PTCs: 2.5A.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- PDS8CB Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
- Input PTC: 9A.
- Outputs
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- PTCs: 2.5A.
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 145 BTU/Hr.
Altronix - T2M7LXK3D - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D). |
Altronix - T2M7LXK3D - Weights (approximate)
| Product Weight | 41.6 Lbs. (18.87 kg). |
|---|---|
| Shipping Weight | 45.6 Lbs. (20.68 kg). |
