Altronix T2MK34 | 4-Door Altronix/Mercury Access and Power Integrat...
Description
Description

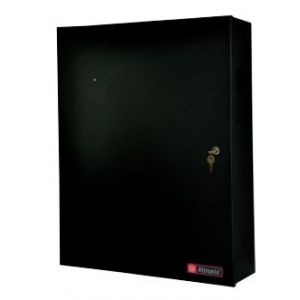

Altronix T2MK34 kit consists of Trove2 enclosure and TM2 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix - T2MK34 - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- 3/4" and 1" combination knockouts.
- Voltage: 12VDC or 24VDC selectable
- Current: 6A @ 12VDC or 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
- Capacity: 7AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
Specifications
Specifications
Altronix - T2MK34 - Overview
- AL600ULXB Power Supply/Charger
- Input
- Voltage: 115VAC, 60Hz, 3.5A max.
- Fusing: 5A / 250V.
- Output
- Voltage: 12VDC or 24VDC selectable.
- Current: 6A @ 12VDC or 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 7AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators LED
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- PDS8 Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from AL600ULXB.
- Input Fuse: 10A / 250V.
- Outputs
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- Fuses: 3A / 32V.
- Indicators LED
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from AL600ULXB.
- Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- ACM4 Access Power Controller
- Input
- Voltage: 24VDC from AL600ULXB.
- Input Fuse: 10A / 32V.
- Outputs
- Voltage: 24VDC.
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
- b) Four (4) dry form "C" 5A rated relay outputs.
- c) Any combination of the above.
- Four (4) auxiliary power outputs (unswitched).
- Outputs Ratings
- Fuses: 3A / 32V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 87 BTU/Hr.
Altronix - T2MK34 - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D). |
Altronix - T2MK34 - Weights (approximate)
| Product Weight | 39.2 Lbs. (17.78 kg). |
|---|---|
| Shipping Weight | 43 Lbs. (19.5 kg). |
