Altronix T2PDK75F16S | 16-Door Altronix/PDK Red Access and Power Integration Kit - Trove2PD2 with eFlow104NB, eFlow102NB, (2) ACMS8, VR6, PD8UL. Trove2 Series
Main Fuse: 6.5A / 250V.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Main Fuse: 5A / 250V.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Fuse: Rating 15A/32V.
Failover: Upon AC loss, instantaneous.
EOL: 10K Resistor.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
DC Output: Powered.
Battery: Discharged or not connected.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Fuses: 3.5A/250V.
Input Fuse: 15A / 32V.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
eFlow104NB Power Supply/Charger - 1 / Input
Voltage: 120VAC, 60Hz, 4.5A.Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC @ 10A.Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
eFlow102NB Power Supply/Charger - 2 / Input
Voltage: 120VAC, 60Hz, 3.5A.Main Fuse: 5A / 250V.
Output
Voltage: 12VDC @ 10A.Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Both Power Supplies: / Battery Backup
Type: Sealed lead acid or gel type.Fuse: Rating 15A/32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator / Input
Voltage: 24VDC from eFlow104NB.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
PD8UL Power Distribution Module / Input
Voltage: 12VDC from eFlow104NB.Outputs
Voltage: 12VDC.Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output.Two (2) ACMS8 Dual Input Access Power Controllers / Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
Fuses: 3A/32V.Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
290 BTU/Hr.Overview

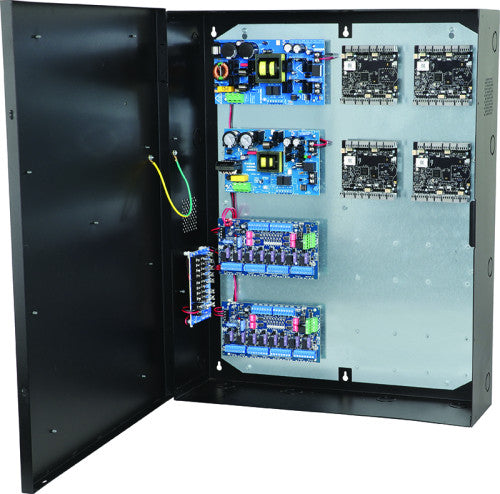

- Altronix T2PDK75F16S kit consists of Trove2 enclosure, TPD2 PDK Red/Altronix backplane with one (1) 24VDC @ 10A, one (1) 12VDC @ 10A power supply/charger, two (2) eight (8) fuse protected dual input/output access control modules, one (1) 12VDC voltage regulator and one (1) eight (8) fuse protected power distribution modules. This kit also accommodates up to four (4) PDK Red modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2PDK75F16S - Overview
- Altronix T2PDK75F16S kit consists of Trove2 enclosure, TPD2 PDK Red/Altronix backplane with one (1) 24VDC @ 10A, one (1) 12VDC @ 10A power supply/charger, two (2) eight (8) fuse protected dual input/output access control modules, one (1) 12VDC voltage regulator and one (1) eight (8) fuse protected power distribution modules. This kit also accommodates up to four (4) PDK Red modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2PDK75F16S - Product Categories
- Security
- Access Control
- Panels
Altronix - T2PDK75F16S - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2PDK75F16S |
| Item Description | 16-Door Altronix/PDK Red Access and Power Integration Kit - Trove2PD2 with eFlow104NB, eFlow102NB, (2) ACMS8, VR6, PD8UL. Trove2 Series |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 49.8 Lbs. |
| (22.59 kg). | Shipping Weight: |
| 53.55 Lbs. | (24.29 kg). |
