Altronix T2PHK33F16P8 | 16-Door Altronix/Open Path Access And Power...
Description
Description

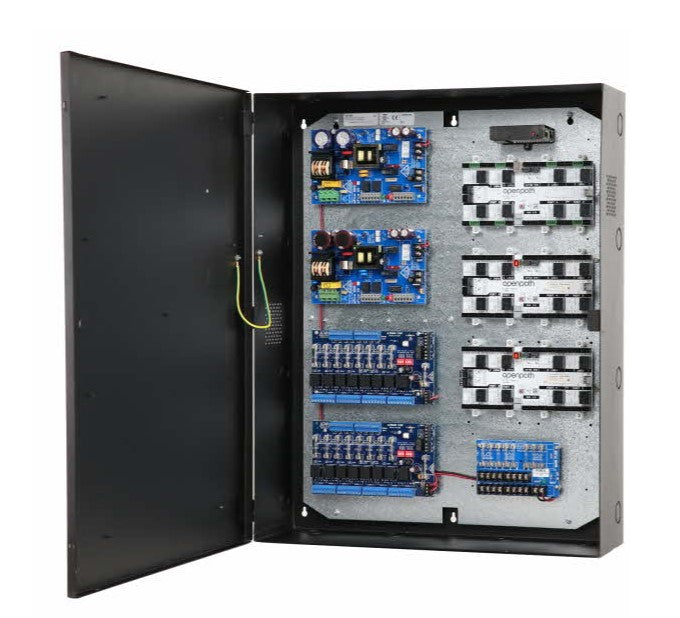

Altronix T2PHK33F16P8 kit consists of Trove2 enclosure, TCV2 Openpath/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, two eight (8) fuse protected output access control modules and one (1) fused power distribution module. This kit also accommodates up to two (2) Openpath Core, two (2) Elevator Board, two (2) 4-Port or 8-Port modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2PHK33F16P8 - Features
- 12VDC or 24VDC power supply/charger
- Accommodates one (1) Openpath OP-ACC, up to two (2) OP16EM, and up to three (3) OP-EX-4E or OP-X-8E modules
- Low Battery and Battery Presence
- Low power shutdown
- Enclosure accommodates up to two (2) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T2PHK33F16P8 - Specifications
| Voltage | 120VAC, 60Hz, 3.5A max. |
|---|---|
| Input Fuse | 5A / 250V. |
| Voltage: | 12VDC or 24VDC selectable. |
| Current | 6A continuous max. |
| Type | Sealed lead acid or gel type |
| Failover: | Upon AC loss, instantaneous |
| Supervised: | Latching or non latching. |
| Operating | 0° C to 49° C (32° F to 120° F). |
| Storage | 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity: | 85% +/- 5%. |
| Product Weight: | 54.7 Lbs. (24.8 kg). |
| Shipping Weight: | 59.7 Lbs. (27.1 kg). |
