Altronix T2PHK33F16P8D | 16-Door Altronix Open Path Access And Powe...
Description
Description

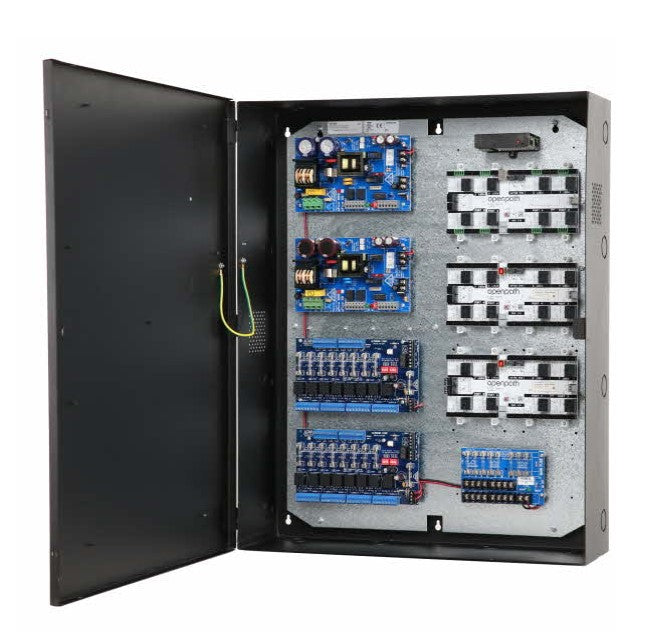

Altronix T2PHK33F16P8D kit consists of Trove2 enclosure, TCV2 Openpath/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, two eight (8) PTC protected output access control modules and one (1) PTC power distribution module. This kit also accommodates up to two (2) Openpath Core, two (2) Elevator Board, two (2) 4-Port or 8-Port modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2PHK33F16P8D - Features
- Low Battery and Battery Presence
- Low power shutdown
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to two (2) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T2PHK33F16P8D - Specifications
| Input Voltage | 120VAC, 60Hz, 3.5A max |
|---|---|
| Input Fuse | 5A/250V |
| Outputs Voltage | 12VDC or 24VDC selectable. |
| Current | 6A continuous max |
| Auxiliary | Power-limited @ 1A (unswitched) |
| Battery Charging Capacity | 12VDC/12AH (2 within enclosure) |
| Type | Sealed lead acid or gel type |
| Green LED | DC Output |
| Enclosure | 27.25" x 21.5" x 6.5" (692.2mm x 546.1mm x 165.1mm) |
| Shipping: | 32.5" x 26.5" x 11.125" (825.5mm x 673.1mm x 282.6mm) |
| Product Weight: | 54.7 Lbs. (24.8 kg). |
| Shipping Weight | 59.7 Lbs. (27.1 kg). |
