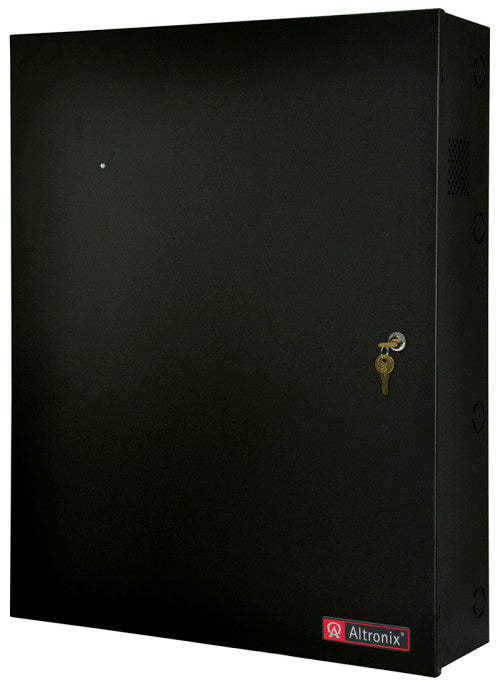

Altronix T2PXK78D | 8-Door Altronix/Paxton Access and Power Integration Kit - Trove2PX2 with AL1024ULXB2, ACM8CB, VR6, PDS8CB

Altronix T2PXK78D | 8-Door Altronix/Paxton Access and Power Integration Kit - Trove2PX2 with AL1024ULXB2, ACM8CB, VR6, PDS8CB

AL1024ULXB2 Power Supply/Charger / Input

Voltage: 115VAC, 60Hz, 4.2A max.
Main Fuse: 5A / 250V.

Outputs

Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.

Battery Backup

Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.

Indicators LED

Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

ACM8CB Access Power Controller / Input

Voltage: 24VDC from AL1024ULXB2.
Main Fuse: 10A / 250V.

Outputs

Voltage: 24VDC.
Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.

Indicators (LED)

Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.

VR6 Voltage Regulator / Input

Voltage: 24VDC from AL1024XB2.

Output

Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.

Indicators LED

Input: 24VDC is present.
Output: Powered.

PDS8CB Dual Input Power Distribution Module / Input

Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
Input PTC: 9A.

Outputs

Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.

Outputs Ratings

PTCs are rated 2.5A.

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

145 BTU/Hr.
