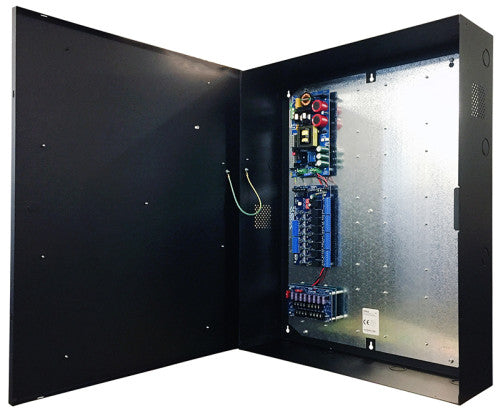

Altronix T2PXK7F8 | 8-Door Access and Power Integration Kit - Trove2PX2 with eFlow104NB, ACM8, VR6, PDS8

Altronix - T2PXK7F8 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.3A / 250V.
• OUTPUT
• Voltage: 24VDC @ 10A.
• Auxiliary: 1A (unswitched).
• Protection: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A/32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Indicators LED
• AC Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• ACM8 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow104NB.
• Main Fuse: 10A / 32V.
• OUTPUT
• Voltage: 12VDC.
• Eight (8) 24VDC independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 32VDC.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• VR6 Voltage Regulator
• Input/Output
• Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A.
• OUTPUT
• Voltage: 12VDC regulated output.
• Output rating: 6A max.
• Other: Surge suppression.
• Indicators LED
• Input: Indicates input voltage is present.
• Output: Indicates normal operating condition.
• PDS8 Dual Output Power Distribution Module
• INPUT
• Voltage Range: 5VDC to 24VDC, up to 10A each, 20A total input.
• Main Fuse Rating: 10A.
• Outputs
• Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
• Do not exceed the individual power supply ratings.
• Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Outputs Ratings
• Voltage Range: 4.8VDC - 24VDC.
• Indicators (LED)
• DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red/Green).
• Multiple units may be daisy-chained to accommodate larger systems.
