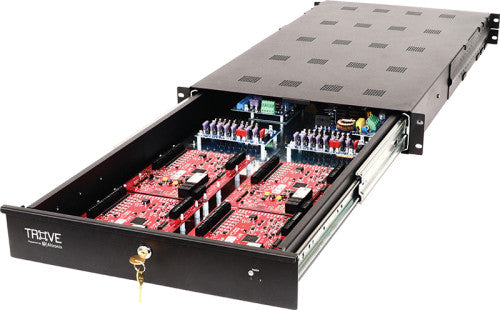

Altronix T2RM78SQ | 8-Door Altronix/Mercury Access & Power Integration Kit - Trove2M2R with AL1024ULXB2, LINQ8ACM, VR6, PDS8

Altronix T2RM78SQ | 8-Door Altronix/Mercury Access & Power Integration Kit - Trove2M2R with AL1024ULXB2, LINQ8ACM, VR6, PDS8

AL1024ULXB2 Power Supply/Charger / Input

Voltage: 115VAC, 60Hz, 4.2A max.
Main Fuse: 5A / 250V.

Output

Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.

Battery Backup

Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.

Indicators LED

Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

VR6 Voltage Regulator / Input

Voltage: 24VDC from AL1024ULXB2.

Output

Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.

Indicators LED

Input: 24VDC is present.
Output: Powered.

PDS8 Dual Input Power Distribution Module / Input

Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.
Input Fuse: 10A / 32V.

Outputs

Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.

Outputs Ratings

Fuses: 3A/32V.

Indicators (LED's)

DC Output: Eight (8) individual output LEDs.
Green: 12VDC.
Red: 24VDC.

LINQ8ACM Networked Access Power Controller / Input

Two (2) Independent Low Voltage Inputs:
- Input 1: 24 VDC from AL1024ULXB2 power supply
- Input 2: 12 VDC from VR6 voltage regulator
Input Fuses: 15A/32V

Outputs

Fuse protected outputs
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing

Output Fuses:

3A/32V

Programming Features: / Eight (8) Programmable Outputs:

- Fail-safe, fail-secure or auxiliary outputs
- Input controlled or manually controlled through software
- High (over) and low (under) voltage and current monitoring by output
- Multiple outputs may be programmed to be triggered by a single input
- Battery back-up by output

Eight (8) Programmable Trigger Inputs:

- Normally open (NO), Normally colsed (NC) or Open collector sink inputs
- Wet Input (5VDC - 24VDC) with 10k resistor
- Any combination of the above

Other Programmable Trigger Inputs:

- Monitor power supply(ies) input for voltage and currect limits (high/low)
- Input and output current calibration, Programmable timer events
- Programmable user levels, Enable or disable alerts by type
- Programmable alert reporting delay

Indicators (LED)

Green AC LED: indicates AC trouble condition
Green BAT LED: indicates battery trouble condition
Green FACP LED: indicates FACP disconnect is triggered
Flashing Blue Heartbeat LED: indicates network connection
Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

123 BTU/Hr.
