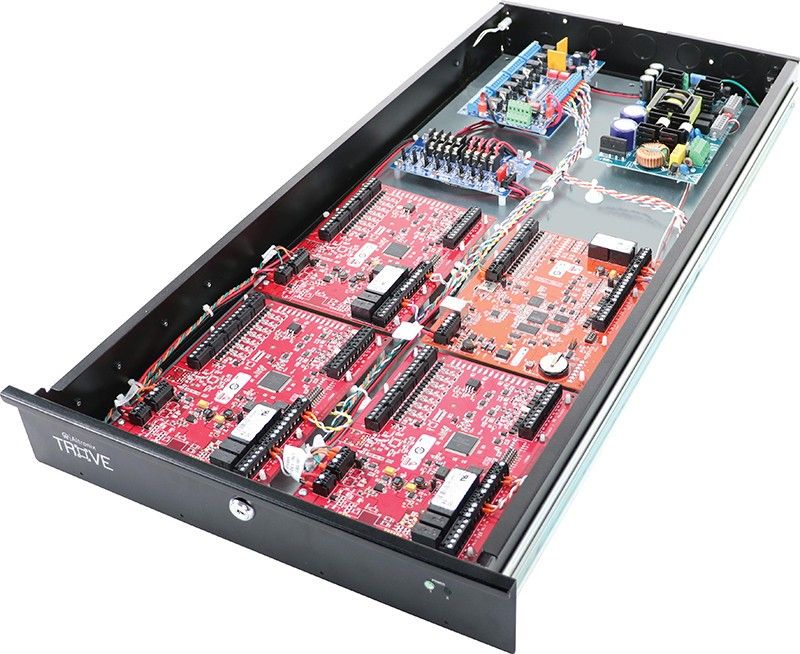

Altronix T2RM7CK1D | 8-Door Altronix/Mercury Access & Power Integration Wired Rack Mount Kit
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2RM7CK1D | 8-Door Altronix/Mercury Access & Power Int...
Description
Description
Altronix T2RM7CK1D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2RM7CK1D accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Altronix - T2RM7CK1D - Features
- eFlow104NB Power Supply/Charger
- Input
- Voltage: 120VAC, 60Hz, 4.5A max
- Main Fuse: 6.3A / 250V
- Output
- Voltage: 24VDC
- Current: 10A continuous
- Auxiliary: Class 2 power-limited @ 1A (unswitched)
- Other: Overvoltage protection. Filtered and regulated
- Battery Charging
- Type: Sealed lead acid or gel type
- Fuse Rating: 15A/32V
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
- Fire Alarm Disconnect
- Supervised: Latching or non-latching
- EOL: 10K Resistor
- Supervision
- AC Failure: Form " contacts
- Battery: Form " contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge
- Indicators LED
- Input: 120VAC is present
- DC Output: Powered
- Battery: Discharged or not connected
- ACMS8CB Dual Input Access Power Controller
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from VR6
- Input PTC: 9A
- Outputs
- Voltage: 12 or 24VDC individually selectable
- Eight (8) selectable 12VDC 24VDC independently controlled outputs or eight (8) indepently controlled Form " relay outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form " Relays rated 28VAC or VDC @ 2.5A Rated
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
- Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Outputs Ratings
- PTCs: 2.5A
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Blue LED: FACP disconnect is triggered
- Individual voltage LEDs:
- Green: 12VDC
- Red: 24VDC
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from eFlow104NB
- Output
- Voltage: 12VDC
- Current: 6A continuous
- Other: Surge suppression
- Indicators LED
- Input: 24VDC is present
- Output: Powered
- PDS8CB Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from eFlow104NB
- Input PTC: 9A
- Outputs
- Voltage: 12VDC and/or 24VDC
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Outputs Ratings
- PTCs are rated 2.5A
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity
- Relative Humidity: 85% +/5%
- BTU/Hr. (approx.):
- 123 BTU/Hr
