Altronix T2RM7CK1DQ | 8-Door Altronix/Mercury Access & Power In...
Description
Description

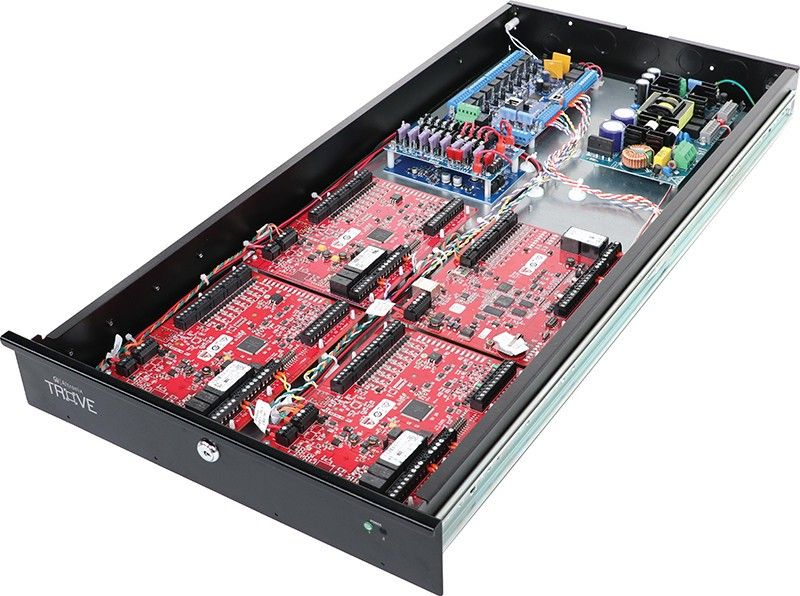

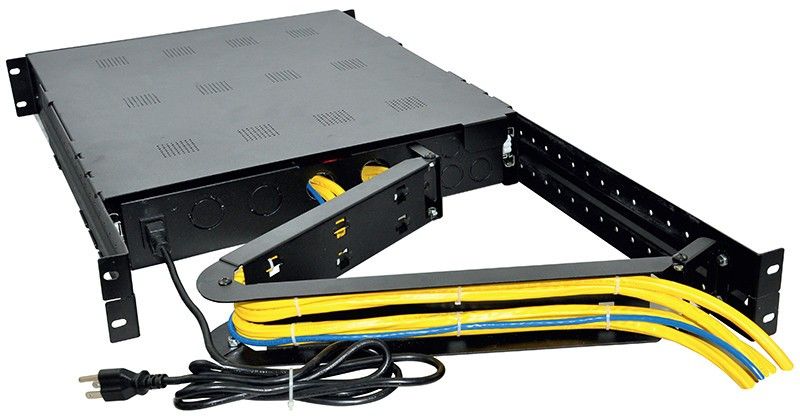

Altronix T2RM7CK1DQ is a 8-door managed access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2RM7CK1DQ accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. Also compatible with these authentic Mercury partners. AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Altronix - T2RM7CK1DQ - Features
- eFlow104NB Power Supply/Charger
- Input
- Voltage: 120VAC, 60Hz, 4.5A max
- Main Fuse: 6.3A / 250V
- Output
- Voltage: 24VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated
- Battery Charging
- Type: Sealed lead acid or gel type
- Fuse Rating: 15A/32V
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
- Fire Alarm Disconnect
- Supervised: Latching or non-latching
- EOL: 10K Resistor
- Supervision
- AC Failure: Form " contacts
- Battery: Form " contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
- Indicators LED
- AC Input: 120VAC is present
- DC Output: 24VDC is present
- Battery: Discharged or not connected
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from eFlow104NB
- Output
- Voltage: 12VDC
- Current: 6A continuous
- Other: Surge suppression
- Indicators LED
- Input: 24VDC is present
- Output: Powered
- PDS8CB Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from eFlow104NB
- Input PTC: 9A
- Outputs
- Voltage: 12VDC and/or 24VDC
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Outputs Ratings
- PTCs are rated 2.5A
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC
- LINQ8ACMCB Networked Access Power Controller
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from VR6
- Input PTCs: 9A
- Outputs
- PTC protected outputs
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Output PTCs:
- 2.5A
- Programming Features:
- Eight (8) Programmable Outputs:
- Fail-safe, Fail-secure or auxiliary outputs
- Input controlled or manually controlled through software
- High (over) and low (under) voltage and current monitoring by output
- Multiple outputs may be programmed to be triggered by a single Input
- Battery back-up by output
- Eight (8) Programmable Trigger Inputs:
- Normally open (NO), Normally colsed (NC) or open collector sink inputs
- Wet Input (5VDC 24VDC) with 10k resistor
- Any combination of the above
- Other Programmable Trigger Inputs:
- Monitor power supply(ies) input for voltage and currect limits (high/low)
- Input and output current calibration, Programmable timer events
- Programmable user levels, Enable or disable alerts by type
- Programmable alert reporting delay
- Indicators (LED)
- Green AC LED: indicates AC trouble condition
- Green BAT LED: indicates battery trouble condition
- Green FACP LED: indicates FACP disconnect is triggered
- Flashing Blue Heartbeat LED: indicates network connection
- Individual OUT1 OUT8 Red LEDs: indicate outputs are triggered
- Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity
- Relative Humidity: 85% +/5%
- BTU/Hr. (approx.):
- 123 BTU/Hr
