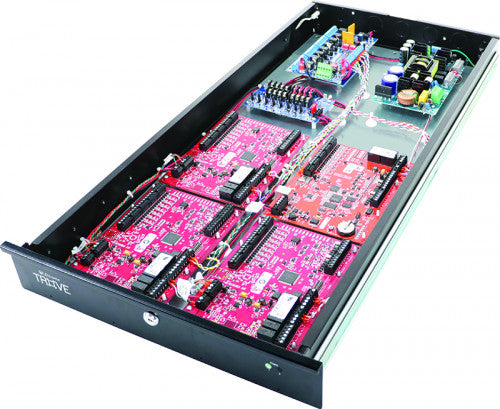

Altronix T2RM7CK1DV | 8-Door Altronix/Mercury Access & Power Integration Wired Rack Mount Kit
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2RM7CK1DV | 8-Door Altronix/Mercury Access & Power In...
Description
Description
Altronix T2RM7CK1DV is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2RM7CK1DV accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Specifications
Specifications
Altronix - T2RM7CK1DV - Specifications
| Input Volage | 220VAC |
|---|---|
| Output | 24VDC |
| Battery Charging | Sealed lead acid or gel type |
| Supervision | Form “C” contacts |
| Indicators LED | 220VAC is present |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 123 BTU/Hr |
| Dimensions | 19"W x 3.375"H x 33.25"D |
| Weight | 40.5 Lbs |
