Brand: Altronix
|
SKU:
10386517

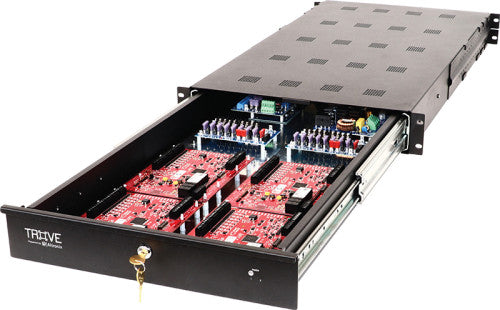

Altronix T2RM7F8SD | 8-Door Altronix/Mercury Access & Power Integration Kit - Trove2M2R with eFlow104NB, ACMS8CB, VR6, PDS8CB
Regular price
$2,464.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2RM7F8SD | 8-Door Altronix/Mercury Access & Power Int...
Regular price
$2,464.45
Unit price
Description
Description
Altronix T2RM7F8SD | 8-Door Altronix/Mercury Access & Power Integration Kit - Trove2M2R with eFlow104NB, ACMS8CB, VR6, PDS8CB
Main Fuse: 6.3A / 250V.
Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
EOL: 10K Resistor.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 9A.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC.
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input PTC: 9A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
eFlow104NB Power Supply/Charger / Input
Voltage: 120VAC, 60Hz, 4.5A max.Main Fuse: 6.3A / 250V.
Output
Voltage: 24VDC.Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Type: Sealed lead acid or gel type.Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
ACMS8CB Dual Input Access Power Controller / Input
Voltage: 24VDC from eFlow104NB and 12VDC from VR6.Input PTC: 9A.
Outputs
Voltage: 12 or 24VDC individually selectable.Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC.
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from eFlow104NB.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
PDS8CB Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from eFlow104NB.Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5A.Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
123 BTU/Hr.Overview
- Altronix T2RM7F8SD rack kit consists of Trove2M2R enclosure/backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input eight (8) PTC protected output access control module, one (1) voltage regulator and one (1) dual input eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Specifications
Specifications
Altronix - T2RM7F8SD - Overview
- Altronix T2RM7F8SD rack kit consists of Trove2M2R enclosure/backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input eight (8) PTC protected output access control module, one (1) voltage regulator and one (1) dual input eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix - T2RM7F8SD - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - T2RM7F8SD - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2RM7F8SD |
| Item Description | 8-Door Altronix/Mercury Access & Power Integration Kit - Trove2M2R with eFlow104NB, ACMS8CB, VR6, PDS8CB |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 40.5 Lbs. |
| (18.37 kg). | Shipping Weight: |
| 45.5 Lbs. | (20.64 kg). |
