Brand: Altronix
|
SKU:
10343940

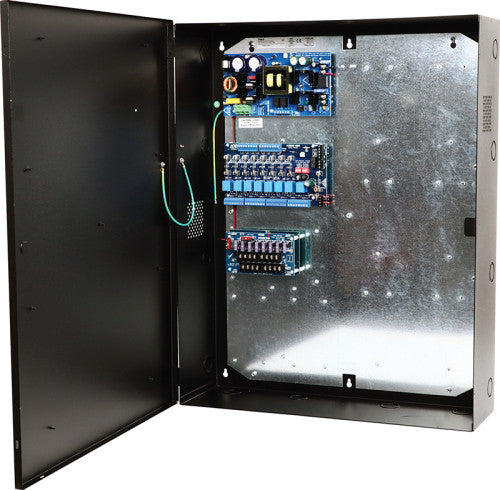

Altronix T2SAK78D | 8-Door Altronix/Salto Access and Power Integration Kit - Trove2SA2 with AL1024ULXB2, ACM8CB, VR6, PDS8CB
Regular price
$1,279.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2SAK78D | 8-Door Altronix/Salto Access and Power Integrat...
Regular price
$1,279.14
Unit price
Description
Description
Altronix T2SAK78D | 8-Door Altronix/Salto Access and Power Integration Kit - Trove2SA2 with AL1024ULXB2, ACM8CB, VR6, PDS8CB
Main Fuse: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 9A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Main Fuse: 10A / 250V.
Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL1024ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 4.2A max.Main Fuse: 5A / 250V.
Outputs
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module / Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5A.Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL1024ULXB2.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
ACM8CB Access Power Controller / Input
Voltage: 24VDC from AL1024ULXB2.Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
128 BTU/Hr.Overview
- Altronix T2SAK78D kit consists of Trove2 enclosure, TSA2 Salto/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module. This kit also accommodates up to four (4) Salto CU42E0, CU4200 or CU4EB8 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2SAK78D - Overview
- Altronix T2SAK78D kit consists of Trove2 enclosure, TSA2 Salto/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module. This kit also accommodates up to four (4) Salto CU42E0, CU4200 or CU4EB8 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2SAK78D - Product Categories
- Security
- Access Control
- Panels
Altronix - T2SAK78D - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2SAK78D |
| Item Description | 8-Door Altronix/Salto Access and Power Integration Kit - Trove2SA2 with AL1024ULXB2, ACM8CB, VR6, PDS8CB |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 54.3 Lbs. |
| (24.6 kg). | Shipping Weight: |
| 59.3 Lbs. | (26.9 kg). |
